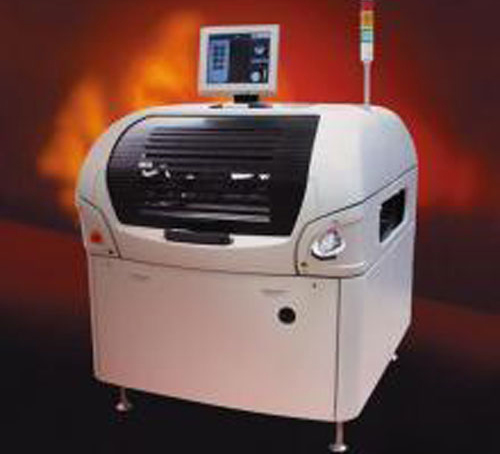

Fully automatic solder paste printing machine 02i

characteristic:

DEK 02i fully automatic printing machine has an unassisted cleaning function on the bottom of the stencil. It can programmably control dry, wet or vacuum cleaning. The cleaning interval can be freely selected. It can completely remove residual solder paste in the mesh to ensure printing quality. The multifunctional board handling device can automatically position and clamp PCB boards of various sizes and thicknesses, with movable magnetic ejector pins and side clamp devices, which effectively overcomes board deformation and ensures a uniform printing process. It has InstinctivTM V9 operating interface and rich software functions, and has a good human-computer dialogue environment. It is simple, convenient, easy to learn and easy to use. It has the function of self-diagnosing faults with sound and light alarms and prompting the cause of the fault. Can work on single/double-sided PCB printed circuit boards.

DEK 02i printing press parameters:

Product name: DEK Horizon-02i fully automatic printing press

Product model: Horizon-02i

Printing speed: 12secs(10secs);

Printing accuracy: 1.66CPK@+/-25 microns;

Transmission direction:Left-Right,Right-Left,Left-Left,Right-Right;

Substrate thickness requirements: 0.2~6mm;

Overall dimensions/weight:45*50-510*508mm (Standard)/800kg
