JUKI placement machine 2060

2023-10-11
5930
JUKI placement machine 2060

Detailed introduction

a brief introdction:

Introduction to JUKI placement machine 2060: juki2060 is a high-precision general-purpose placement machine that can perform high-density placement.

JUKI placement machine 2060

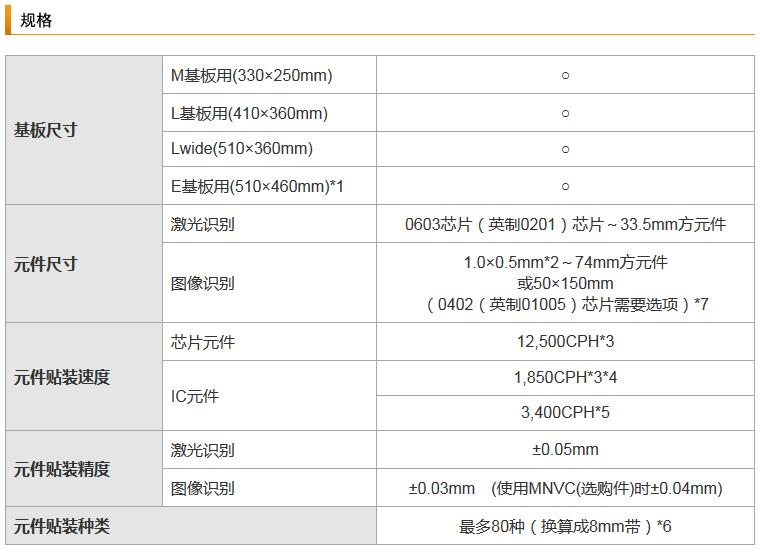

The following are the parameters of JUKI SMT 2060:

Substrate size:
For M substrate (330×250mm)
For L substrate (410×360mm)
Lwide (510×360mm)
For E substrate (510×460mm)*1

Component size:
Laser identification 0603 chip (imperial 0201) chip ~ 33.5mm square component
image recognition 1.0 × 0.5mm * 2 ~ 74mm square component or 50 × 150mm (0402 (imperial 01005) chip requires option) * 9

juki2060 component placement speed:
chip components 12,500CPH*3
IC components 1,850CPH*3*4 3,400CPH*5

Component placement accuracy:
laser recognition ±0.05mm
image recognition ±0.03mm (±0.04mm when using MNVC (optional))

Component mounting types:
up to 80 types (converted to 8mm tape)*6

Device size*7 (W×D×H*8)
1,400×1,393×1,440mm

Weight: about 1,410kg

2060 2.jpg
