JUKI placement machine 2070

2023-10-11
5493

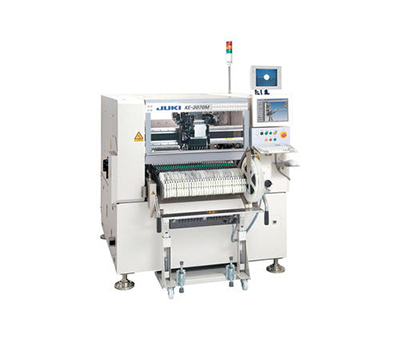

JUKI placement machine 2070

Detailed introduction

A brief introduction to JUKI placement machine 2070:

 The juki2070 is a chip placement machine suitable for high-speed placement of small components. It is a chip placement machine suitable for high-speed placement of small components.

Not only does laser recognition support a wide range of components, but also using the MNVC option enables high-precision image recognition of small IC components, supporting flexible production line configurations.


JUKI placement machine 2070 details:

JUKI placement machine 2070

Chip component
  23,300CPH (laser recognition/optimal conditions) (0.155 seconds/chip)
  18,300CPH (laser recognition/IPC9850)

IC component
  4,600CPH (image recognition/when using MNVC option)

Laser placement head × 1 (6 Nozzle)

0402 (Imperial 01005) chip ~ 33.5mm square component

image recognition (use MNVC option: reflective/transmissive recognition, ball recognition)

Substrate size
 For M substrates (330×250mm)
 For L substrates (410× 360mm)

 For E substrate (510×460mm)


Component size
 laser identification 0402 (imperial 01005) chip ~ 33.5mm square component
 image recognition 1.0 × 0.5mm ~ 20mm square component


Component placement speed
 : The best conditions for chip components are 0.155 seconds/chip (23,300CPH)
 IPC9850 18,300CPH
 IC components 4,600CPH
 Actual efficiency: The placement speed of IC components is to mount 36 QFPs (more than 100 pins) on the entire surface of an M-size substrate ) or BGA (256 balls or more).

Component placement accuracy
 laser recognition ±0.05mm (Cpk≧1)
 image recognition ±0.04mm



 Up to 80 component mounting types (converted into 8mm tape)
