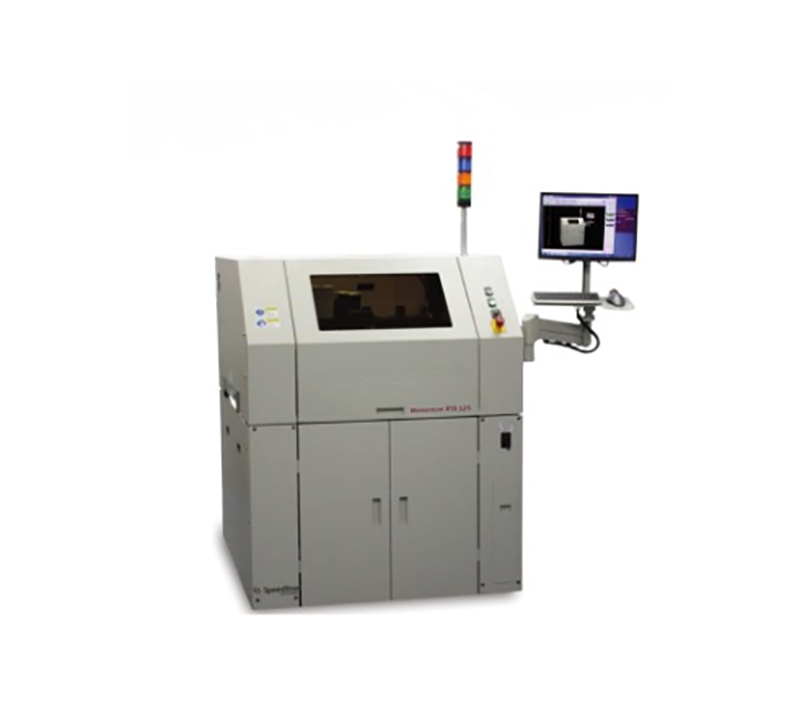

BTB125 printing press

Detailed introduction

BTB125 printing press


characteristic:

The MPM Momentum BTB 125 press combines state-of-the-art technology, high reliability, industry-leading precision and ease of operation. Redefining value leadership with class-leading high accuracy and repeatable accuracy. Easy to operate, easy to learn and use. Industry-leading technology creates better equipment performance.

MPM Momentum BTB125 printing press parameters:

Larger substrate size (XxY): 609.6mmx508mm (24”x20”)

For circuit boards larger than 20", special clamps are required

Minimum substrate size (XxY): 50.8mmx50.8mm (2”x2”)

Substrate thickness size: 0.2mm to 5.0mm (0.008” to 0.20”)

Maximum substrate weight: 4.5kg (10lbs)

Substrate edge clearance: 3.0mm (0.118")

Bottom clearance: 12.7mm (0.5") standard. Configurable 25.4mm (1.0")

Substrate clamping: Fixed top clamping, bench vacuum

Substrate support method: Magnetic ejector pin Optional accessories: vacuum baffle, vacuum ejector pin, support block, special clamp, Zhuanli-approved automatic tool, Quik-Tool

Machine weight: 797kg (1757lbs)

Weight including box: 1090.5kg (2399lbs)
