fujiXPF-L/W

2023-10-10
5179

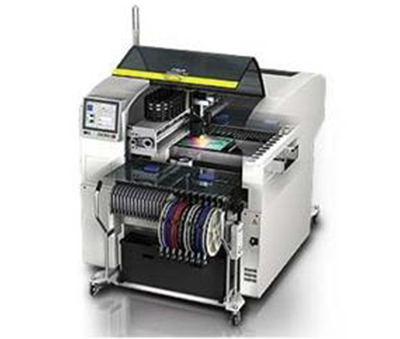

fujiXPF-L/W

Detailed introduction

fuji/Fuji chip placement machine  XPF-L/W high-speed composite chip placement machine parameters

Machine specifications

Rotating automatic changing head

Single nozzle

M4 automatic replacement head

Dispensing automatic replacement head

Number of suction nozzles

12

1

4

Number of glue injection barrels equipped:

1/1 adhesive platform

Automatically change the number of head collections

2(XPF-L)/3(XPF-W)

6(XPF-L)/8(XPF-W)

1

Number of occupied troughs:

(When using the material tray, store 1 automatic replacement head for measuring the height of the material tray)

8 troughs (MFU-40)


(The mounting position is fixed


Can carry up to 4 units)

Object component

0402(01005)~20×20mm

1005(0402)~45×150(68×68)mm

4 nozzle suction: 3×3~14×14mm

Carrying platform: Side 1 test

Height MAX 3.0mm

Height MAX 25.4mm

2 nozzles for suction: 14×14~

(MFU-40 or fixed feeding station)



22×26mm




Height MAX 6.5mm


Placement cycle

XPF-L

0.144 sec / piece 25,000 cph

0.400 sec / piece 9,000 cph

4 nozzle suction: 0.343 sec /

Coating time:

10,500 cph

0.2 sec/shot

2 nozzle suction: 0.456 sec /


7,900 cph


XPF-W

0.145 sec / piece 24,800 cph

0.418 sec / piece 8,600 cph

4 nozzle suction: 0.351 sec /


10,250 cph


2 nozzle suction: 0.462 sec /


7,800 cph


Placement accuracy

Small chip components, etc.

±0.050mm cpk≧1.00

±0.040mm cpk≧1.00

-

Coating position accuracy:

±0.066mm cpk≧1.33

±0.053mm cpk≧1.33

±0.1mm cpk≧1.00

QFP components

±0.040mm cpk≧1.00

±0.030mm cpk≧1.00

±0.040mm cpk≧1.00


±0.053mm cpk≧1.33

±0.040mm cpk≧1.33

±0.053mm cpk≧1.33


Target circuit board size (L × W)

MAX 457mm × 356mm Thickness 0.4 (0.3) ~ 5.0mm (XPF-L) /

686mm × 508mm Thickness 0.4~6.5mm (XPF-W) MIN 50mm × 50mm

Board load time

1.8sec (XPF-L) / 3.5sec (XPF-W)

Machine size

XPF-L

L: 1,500mm W: 1,607.5mm H: 1,419.5mm (carrying height: 900mm, excluding signal tower)

XPF-W

L: 1,500mm W: 1,762.5mm H: 1,422.5mm (carrying height: 900mm, excluding signal tower)

Machine weight

Main body XPF-L: 1,500kg / XPF-W: 1,860kg

MFU-40: Approximately 240kg (when fully loaded with W8 feeder)

BTU-AII: about 120kg BTU-B: about 15kg MTU-A II: about 615kg (full tray・feeder size)

Component packaging

●Material belt components (JIS standard, JEITA), material tube components, material tray components









Other options

●Tube feeder ●Wide-angle positioning camera ●Immersion flux unit ●Roll mounting station (built-in type)
●Lead coplanarity inspection ●Special nozzle & mechanical chuck ●Fujitrax

Feature 1: The placement work head can be automatically replaced during production

Realized the world's first automatic replacement of work head.

Because it can automatically change from a high-speed working head to a multi-functional working head while the machine is running, all components can always be mounted with a better working head.

The work head for applying adhesive can also be automatically replaced, so that only one machine can be used to apply adhesive and mount components.


Feature 2: No need to worry about the balance between high-speed machine and multi-function machine

By realizing automatic replacement of work heads, the boundaries between high-speed machines and multi-function machines are eliminated (no boundaries).

For all board types, the machine's capabilities can be maximized because the balance between machines is always better

Feature 3: No need to worry about the balance between high-speed machine and multi-function machine

By realizing automatic replacement of work heads, the boundaries between high-speed machines and multi-function machines are eliminated (no boundaries).

For all board types, the machine's capabilities can be maximized because the balance between machines is always better
