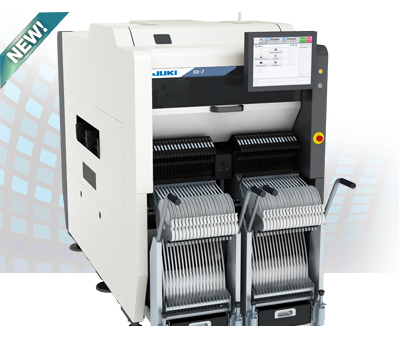

Detailed introduction of JUKI placement machine RX-7

Component placement speed (better conditions): 75,000 CPH for chip components

Component size: 0402 (1005) chip ~ 5mm square component

Component placement accuracy: ±0.04mm (±Cpk≧1)

The placement head uses a rotating head.

Although the width is only 998mm

The camera installed in the placement head detects whether there is a chip standing, the presence of parts, and the chip reflection.

Achieves high-quality placement of extremely small parts
