FUJI/Fuji high-speed placement machine NXT-H

2023-10-12
4939
FUJI/Fuji high-speed placement machine NXT-H

Detailed introduction

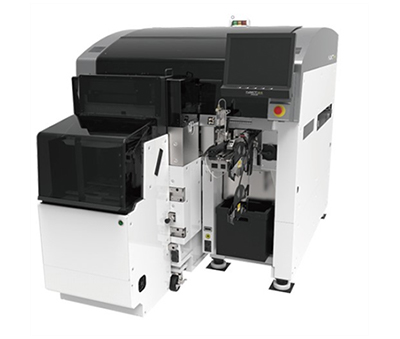

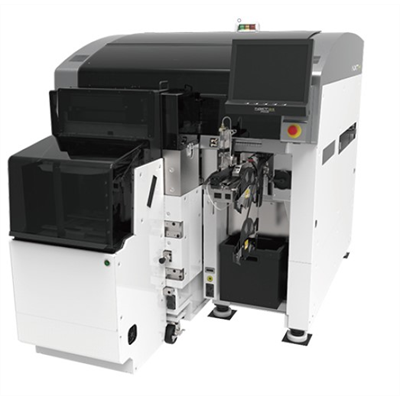

FUJI/Fuji module type high-speed placement machine NXT-H picture

Functional features of FUJI/Fuji modular high-speed placement machine NXT-H


  1. Can be mixed and mounted to supply Dle and SMD components with different forms

    ● 4 corresponds to wafer sizes from 4 to 12 inches

    ● A maximum of 16 W4~W16mm material rolls can be placed on the fixed material station

2. Module concept that can cope with various productions

    ● Inherited the concept of NXT series, the best-selling model in the SMT industry

    ● Just change the working head to flexibly cope with the production forms of flip chip, small bare chip, and large bare chip

3. Compatible with flip chip/Face up

    Flip-chip/Face up production methods can be changed and up to 25 types of wafers can be supplied in multi-wafer production

4. Automatic replacement of top cylinder

    Equipped with a jack-up stand and a flip-up nozzle changer for automatic replacement during production

5. Automatically replace the nozzle

    Equipped with a nozzle changer that can automatically change nozzles according to components during production

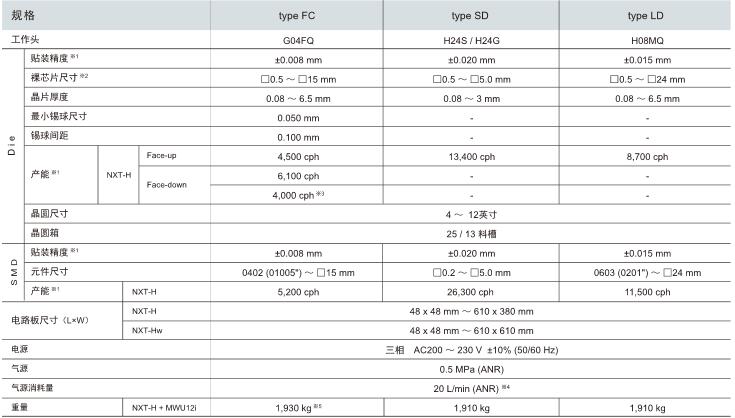

FUJI/Fuji modular high-speed placement machine NXT-H detailed parameters
