PEMTRN SPI

2023-09-23
6306
PEMTRN SPI

Detailed introduction

Benchuang PEMTRN solder paste thickness detector 7700E online 3D SPIEquipment imported from South Korea,

With dual 3D light sources, 64-bit Win7 system, true color 3D stereoscopic images, simple and clear user interface, and real-time quality monitoring and control solutions, Benchuang PEMTRN Solder Paste Thickness Tester 7700E Online 3D SPI is favored by customers.

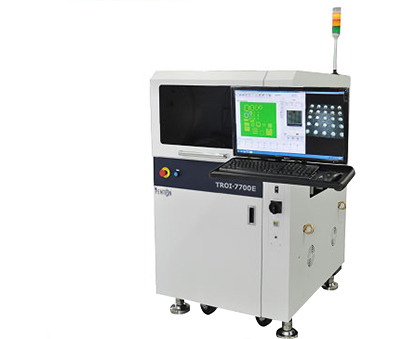

Benchuang PEMTRN solder paste thickness detector 7700E online 3D SPI

Benchuang PEMTRN solder paste thickness tester 7700E online 3D SPI is a Korean imported brand. Benchuang PEMTRN solder paste thickness tester 7700E online 3D SPI dual and three-D light source detection. Its powerful performance effectively guarantees the quality of your printed products.



Dual 3D light source

The perfect combination of 2D and 3D effectively eliminates bright and shadow images, and provides high-quality 3D images with high-performance cameras to ensure high accuracy and high speed of testing.


High-speed, high-stability computer systems are configured to meet increasingly intensive product designs.


Simple and clear user interface

 The self-developed gerber editor is easy to operate and program. The same interface can display all commonly used functions, avoiding the trouble of switching back and forth between multiple interfaces. The simple and clear interface can be suitable for operators of any level.

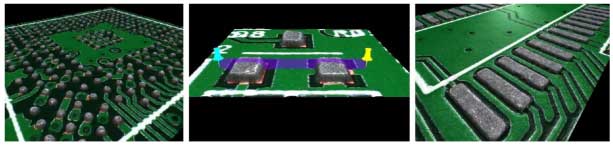

True color 3D stereoscopic images

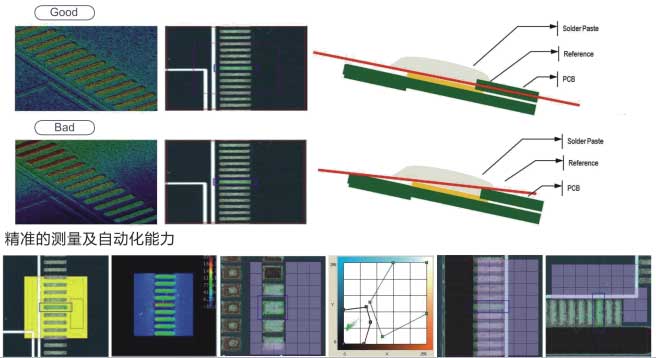

  The usual SP1 can only calculate the height of the part above the silk screen, but the PEMTRN solder paste thickness detector 7700E online 3D SPI uses its colorxY Zhuanli technology to easily distinguish the adjustment finger, thereby accurately finding the zero reference plane.

In addition, it can display true-color 3D images rotated at any angle, making it easier for users to see clear and vivid tin images, thus avoiding the operator's trouble of repeatedly confirming the actual object under the microscope.

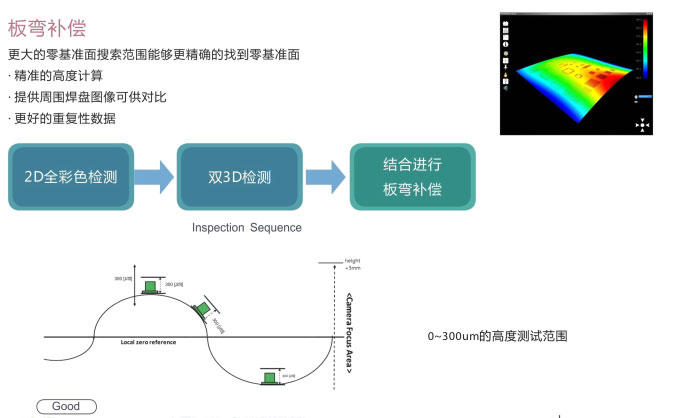

Benchuang PEMTRN solder paste thickness detector 7700E online 3D SPI bending plate compensation:
