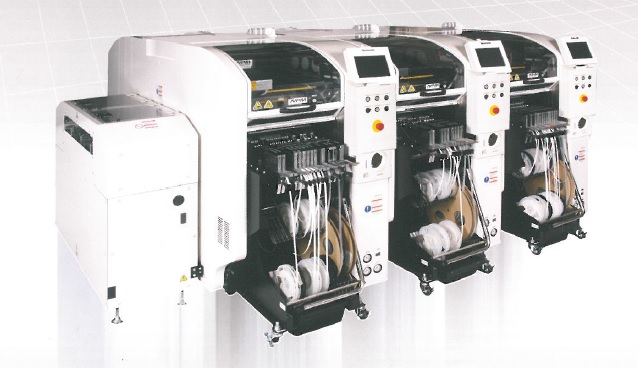

Panasonic placement machine NPM-D

2023-09-22
5335
Panasonic placement machine NPM-D

Detailed introduction

Model name: NPM-D

Substrate size

Double rail type: L50mm×W50mm~L510mm×W300mm

Monorail type: L50mm×W50mm~L510mm×W590mm

Substrate replacement time

Dual-rail type: 0s** cannot be 0s when the cycle time is less than 4.5s.

Monorail: 4.5s

Power supply: three-phase AC200,220,380,400,420,480V2.5kVA

Air pressure source*2: 0.5MPa, 100L/min (ANR)

Equipment size*2: W835mm×D2652mm*3×H1444mm*4

Weight: 1520kg (Main body only: Varies depending on the configuration of optional parts.)



Mounting head: 16 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 70000cph (0.051s/chip)

IPC9850: 53800cph*5

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm)0402 chip*6~L6×W6×T3

Component supply tape width: 8/12/16/24/32/44/56mm

8mm Tape: Max, 68 strands (double taping rack, small reel)



Mounting head: 12 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 62500cph (0.058s/chip)

IPC9850: 48000cph*5

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm)0402 chip*6~L12×W12×T6.5

Component supply tape width: 8/12/16/24/32/44/56mm

8mm Tape: Max, 68 strands (double taping rack, small reel)



Mounting head: 8 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 40000cph (0.090s/chip)

Mounting accuracy (Cpk≧1): ±40μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size (mm)0402 chip*6~L32×W32×T12

Component supply tape width: 8/12/16/24/32/44/56mm

8mm Tape: Max, 68 strands (double taping rack, small reel)

Rod shape: Max, 8 pieces, Pallet: Max. 20 pieces (1 pallet feeder)



Mounting head: 2 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 8500cph (0.423s/QFP)

Mounting accuracy (Cpk≧1): ±30μm/QFP

Component size (mm)0603 chip~L100×W90×T28

Component supply taping width: 8~56/72/88/104mm

8mm Tape: Max, 68 strands (double taping rack, small reel)

Rod shape: Max, 8 pieces, Pallet: Max. 20 pieces (1 pallet feeder)



*1: Due to different substrate transmission standards, it cannot be connected to the NPM (NM-EJM9B) dual-rail specification.

*2: Subject only

*3: The D dimension is 2683mm when the pallet feeder is mounted, and the D dimension is 2728mm when the exchange trolley is mounted.

*4: Excluding identification monitors and signal towers

*5: This is the reference speed based on IPC9850.

*6: 0402 chip, requires special nozzle and material rack

*7: The foreign matter to be inspected refers to chip components.

*8: Solder paste inspection and component inspection cannot be performed at the same time on one inspection head.

*9: This is the accuracy of the solder paste inspection position measured based on our company's measurement standards using a glass substrate for correction. In addition, it may be affected by sudden changes in ambient temperature.

*Values such as placement speed, inspection time, and accuracy may vary depending on conditions.

*Please refer to the "Specifications" for details.



Panasonic placement machine NPM-D product features:



Achieve high productivity per unit area through integrated mounting production line (printing & mounting & inspection)

Customers can freely choose the installation production line

Realize the overall management of the production line, production workshop and factory through system software



High productivity - using dual-track installation method

Industry-leading productivity per unit area: When connected to 3 NPM units, the placement speed is as high as 171,000cph, and the productivity per unit area is 27,800cph/㎡

Dual-track conveyor belt: When components are mounted on one track, substrates can be replaced on the other side to improve productivity and enable the production of heterogeneous substrates.



High functionality & high reliability

Inheriting Panasonic’s implementation feature DNA: fully compatible with CMSeries hardware

It has the ability to correspond to 0402-100*90mm components, with functions such as component thickness inspection and substrate bending inspection, which can greatly improve placement quality and fully meet customer needs for difficult processes such as POP and flexible substrates.



Simple operation

Adopting a humanized interface design and machine model switching instructions, it can greatly shorten the time of changing the material rack trolley.
