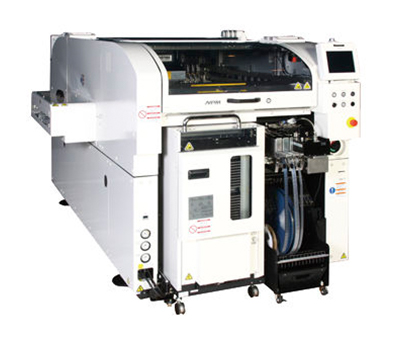

Product name: Panasonic NPM-TT2 multi-function placement machine

PC substrate size:

Monorail type: L50mm*W50mm～L510mm*W590mm

Double rail type: L50mm*W50mm～L510mm*W300mm

M substrate size:

Monorail type: L50mm*W50mm～L510mm*W510mm

Double rail type: L50mm*W50mm～L510mm*W260mm

Substrate replacement time

Monorail type: 4.0s (when no components are mounted on the back side of the substrate)

Dual-rail type: 0s* cannot be 0S when the cycle time is less than 4.0s.

Power supply: three-phase AC200, 220, 380, 400, 420, 480V 2.5kVA

Air pressure source: Min.0.5MPa, 200L/min (ANR)

Equipment size: W1300mm*D2798mm*H1444mm

Weight: 2690kg (Main body only: Varies depending on the configuration of optional parts.)

Mounting head: 8 nozzle mounting head (when equipped with 2 mounting heads)

Mounting speed PC size: 36000cph (0.1s/chip)

          M size: 34920cph (0.1s/chip)

Mounting accuracy (Cpk≥1): ±40μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size: 0402 chip*6~L32mm*W32mm*T12mm

Component supply tape width: 4~56/72mm

Mounting head: 3-nozzle mounting head*5 (when equipped with 2 mounting heads)

Mounting speed PC size: 14400cph (0.25s/chip) 11800cph (0.31s/QFP)

          M size: 13968cph (0.26s/chip) 11446cph (0.32s/QFP)

Mounting accuracy (Cpk≥1): ±40μm/chip ±30μm/QFP

Component size: 0603 chip~L150mm*W25mm (diagonal 152)*T30mm

Component supply taping width: 4~56/72/88/104mm

Component supply tape: front and rear tray feeder specifications: Max.52

               Front and rear exchange trolley specifications: Max.120

              (Tape width: 4/8mm thin single type feeder and double type tape feeder, small reel)

         Rod shape: front and rear pallet feeder specifications: Max. 6 links

               Front and rear exchange trolley specifications: Max.14

         Tray: Max. 40 pieces (front supply part: Max. 20 pieces + rear supply part: Max. 20 pieces)

Panasonic placement machine NPM-TT2 machine features:

1. Basic specifications

1. Can be directly connected to NPM-D3/W2

   ——(By connecting to NPM-D3/W2, a production line configuration that achieves both high productivity per unit area and versatility* When directly connected to NPM-W2,

Requires M size double-track conveyor belt (optional). )

2. Mounting head (8 nozzle mounting head, 3 nozzle mounting head)

   ——(You can choose a versatile 8-nozzle placement head or a 3-nozzle placement head with special-shaped component capabilities)

3. The specifications of the supply department can be selected and changed.

   ——(By reorganizing the pallet feeder/exchange trolley, a production line configuration can be realized that can correspond to the component supply form)

4. Use multi-function recognition camera

   ——(High-speed identification and inspection of components in the height direction enables reliable and high-speed mounting of special-shaped components)

5. Alternate implementation and independent implementation correspondence

   ——(Be able to choose a better installation method corresponding to the production substrate)

2. Productivity/machine type switchability

1. Multifunctional recognition camera

   ——Equipped with the same multi-functional recognition camera as NPM-D3/W2. in addition. Including detecting the component status in the height direction, the recognition speed is accelerated.

2. High productivity with completely independent implementation

   ——Achieve independent installation of pallet components. The 3-nozzle placement head increases the speed of placement of medium and large components. Improve overall production line output.

3. Support pin automatic replacement function (optional)

   ——The support pin position replacement operation is automated, contributing to the realization of non-stop machine model switching, labor saving, and preventing operating errors.

3. Universality

1. Supply department switching support (optional)

   ——The pallet feeder and the 17-link integrated exchange trolley can be switched at the customer's site, and the equipment configuration corresponding to the component supply form can be configured.

2. Corresponding to large components

   ——Able to install various large-scale special-shaped components.

3. Transfer unit (optional)

   ——A universal transfer unit* is installed at the rear feeder fixed station 13, which can transfer and install PoP components (tape, tray), etc.
