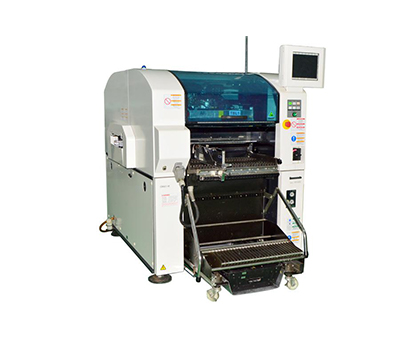

Panasonic placement machine CM401

2023-10-11
5147

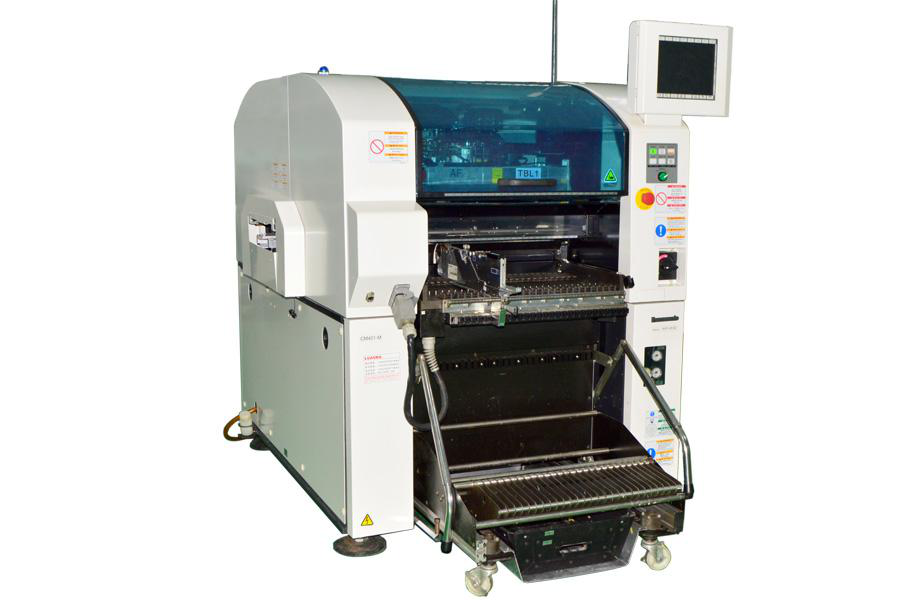

Panasonic placement machine CM401

Detailed introduction

characteristic:

Panasonic placement machine CM401 : Compact structure and high productivity per unit area. Ultra-high-speed and high-precision placement is achieved through the development of a high-speed multi-function placement head and a high-speed, high-precision identification system. At the same time, the compact and compact body structure can take advantage of space saving.



Technical Parameters:

Quick placement head

Placement speed 0.12 s/chip,

Mounting accuracy +/-50um/ chip cpk>1

Component size 0603 chip - L24mm X W24mm

Multifunctional placement head

Placement speed 0.42s/QFP

Placement accuracy +/- 30 um/ QFP

Device dimensions: L2460 mm x W12602 mm x H 1 430 mm

Weight 1500KG
