Panasonic placement machine NM-EJM7D-MA product parameters
Model name: NPM-W2
Adapted placement head:
Front side placement head: inspection head
Rear side placement head: lightweight 16-nozzle placement head, 12-nozzle placement head, lightweight 8-nozzle placement head, 3-nozzle placement head V2
![screenshot20231206 (1).png](/uploads/image/20240422/1713748620926345.png)
![1702278880439249.png screenshot20231211.png](/uploads/image/20231211/1702278880439249.png)
Panasonic placement machine NM-EJM7D product features
1. Mounting & inspection is a coherent system to achieve high efficiency and high quality production: according to your installation requirements, you can choose high production mode or high precision mode
![1701830437129751.png screenshot20231206 (2).png](/uploads/image/20240422/1713748622136103.png)

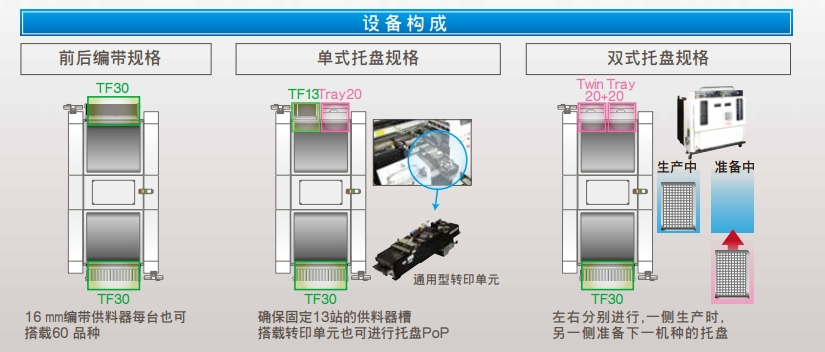

2. Can cope with large substrates and large components: Can cope with large substrates of 750 × 550 mm, and the component range has also been expanded to L 150 × W 25 × T 30 mm
![1701830486432300.png screenshot20231206 (3).png](/uploads/image/20240422/1713748623275468.png)
![1701830550314578.png screenshot20231206 (4).png](/uploads/image/20240422/1713748625936416.png)
3. Dual-track mounting (select specifications) to achieve high productivity per unit area: According to the production substrate, you can choose the best mounting method among "independent mounting", "alternating mounting" and "hybrid mounting"
![1701830726228990.png image.png](/uploads/image/20240422/1713748627977475.png)
