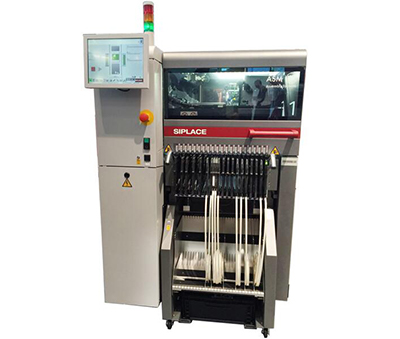

Siemens placement machine TX2i

Siemens placement machine TX2i

Detailed introduction

Product Features:

The Siemens placement machine TX2i is small in size and powerful. It provides a placement speed of up to 96,000 cph in an area of only 2.3 square meters (equivalent to 25 square feet), and can place 0201 (metric) components at full speed with greater precision. , placement accuracy of: 25 µm @ 3 sigma, improved SIPLACE SpeedStar lasting speed and accuracy. The world's first placement head that can switch between collect and place, pick and place and hybrid placement modes on demand. SIPLACE software, the right software makes the difference in electronics production, standard dual-track conveyor system, supports flexible production concepts (synchronous, asynchronous). Advanced feeder options such as the intelligent SIPLACE SIPLACE imaging system. One-piece imaging - accurate and high-resolution control system to ensure greater process reliability.

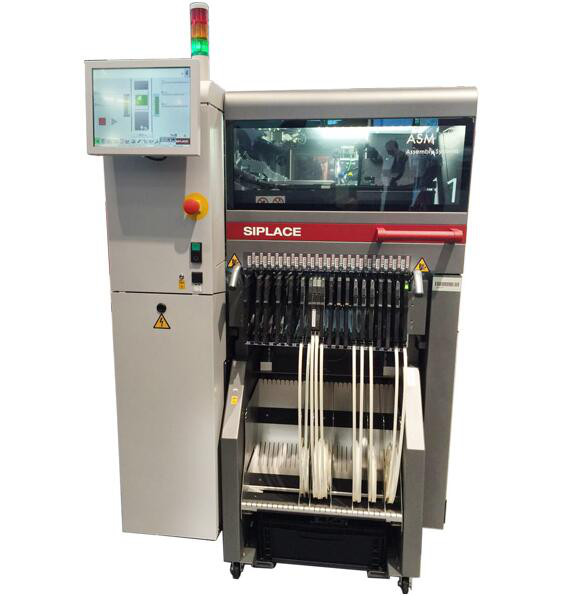

 Siemens placement machine TX2i.png

Technical parameters of Siemens placement machine TX2i:

Number of cantilevers: 2

IPC speed: 79,000 cph

SIPLACE Benchmark: 96,000 cph

Machine Dimensions: L x W x H 1.0 x 2.2 x 1.45* m

Component range: 0201 - 55 x 45 mm

Mounting accuracy: ± 22 μm / 3σ

Angle accuracy: ±± 0.05° / 3σ

Maximum component height: 25 mm

Mounting pressure: 1.0 - 15 N

Conveyor belt type: flexible double-track conveyor

Conveyor mode: asynchronous, synchronous, independent placement

PCB Format: Flexible Dual Rail Conveyor: 45 x 45 mm - 375 x 260 mm

            Dual-rail transport in single-rail mode (optional): 45 x 45 mm - 375 x 460 mm

PCB thickness:0.3 mm - 4.5 mm

PCB weight: 2.0 kg more

Larger conveyor slot: 80 8mm X feeder positions

Feeder module types: SIPLACE intelligent tape feeder, SIPLACE linear dip feeder, SIPLACE dispensing feeder, SIPLACE JTF-ML***
