characteristic:

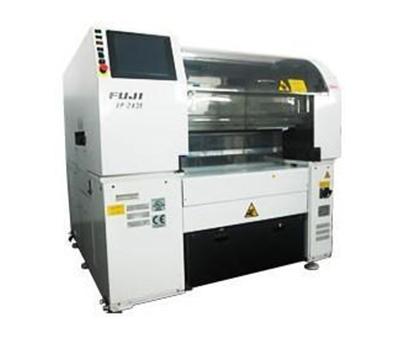

Fuji SMT machine XP143E comes from abroad. Can mount 0402 (01005) extremely small chips; BGA and CSP can also be mounted with options; the largest component is expanded to 25*2Omm; equipped with a single tray platform and an automatic nozzle changer; equipped with a delivery side buffer function , No exhaust gas patch function;

Fuji placement machine XP143E parameters:

Electronic board size: The maximum limit is: 457X356mm; the minimum limit is: 50X50mm

Electronic board thickness: 3--4.0mm

Component types: Maximum 100 types (50 types each on the front and rear sides)

Board loading time: 4.2 seconds

Mounting accuracy: ±0.050mm cpk≧1.00: rectangular components, etc.; ±0.040mm cpk≧1.00: QFP, etc.

Placement speed: 0.165 seconds/piece, 21,800 pieces/hour: rectangular components; 0.180/second/piece, 20,000 pieces/hour: 0402

Target components: 0402-25mm*20mm Maximum height: 6mm

Machine size: L: 1,500mm/W: 1300mm/H: 1,408.5mm (excluding signal towers)

Machine weight: about 1,800KG (main body)
