Compact high-speed placement machine XP-142E

2023-10-10
5040

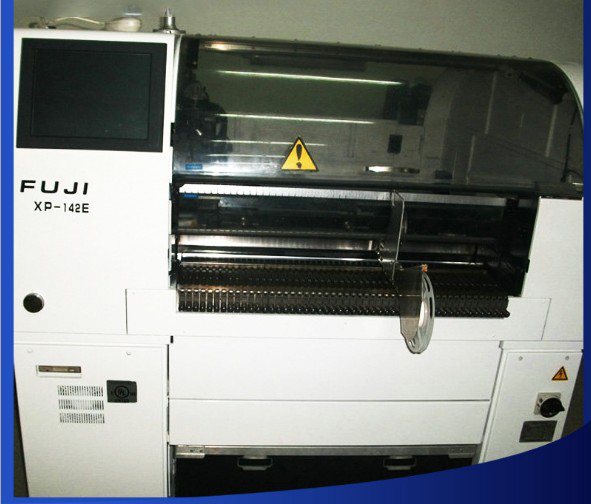

Compact high-speed placement machine XP-142E

Detailed introduction

characteristic:

Fujifilm SMT machine (SOIC28PIN, aluminum electrolytic capacitor) high-speed placement machine.

 Picture 2.png

Fuji placement machine XP142E parameters:

Mounting range of Fuji SMT machine: 0603-20x20mm (28pin IC), parts with height below 6mm can be mounted with BGA 2.

XP142 placement speed: 0.165s/chip, 21800chips/h

XP142 placement accuracy: ±0.05mm

Applicable substrate: 80x50mm-457x356mm, thickness 0.3-4mm

Material rack support: front and rear material supply, 100 stations in total, trolley material changing method

Machine size: L1500mm x W1300mm x H1408mm (excluding signal towers)

Fuji XP142 SMT machine weight: 1800KG

Fuji XP142 placement machine Year of production: 2004

Language support: Chinese, English, Japanese

Program editing: supports both online programming and offline programming
