Fuji placement machine AIMEX IIIc

2023-10-10
5036

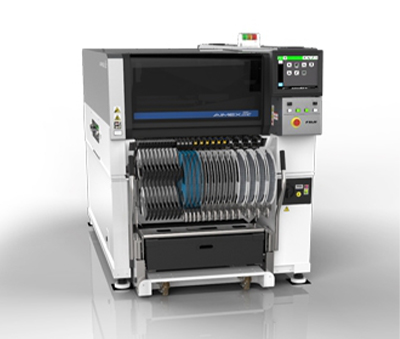

Fuji placement machine AIMEX IIIc

Detailed introduction

characteristic:

1. Compact design for easy import

AIMEXIIIc is a compact placement machine with a width of 1280mm and a depth of 2346mm .

Not only does it facilitate the introduction of new machines, it also achieves a high degree of productivity per unit area.



2. Dyna working head and abundant number of loading troughs

The largest number of component types at 130 compared to the same industry standard, and can flexibly respond to changes in component types and quantities. By using the Dyna work head (DX), one machine can handle components from 0402 to 74×74mm.

*Based on our company’s survey data in October 2015.



3. On-board editing functions that anyone can use conveniently

AIMEXIIIc uses a 12-inch touch screen to improve operability.

Because the production program can be edited on the machine, it can quickly respond to the launch of new products and handle errors.






Technical Parameters:

Capacity (CPH): 37,000 (1 robot specification)

74,000 (2 robot specifications)

Applicable circuit board size (L × W) 48mm × 48mm ~ 508mm × 400mm (single conveyor rail specifications)

Component types: MAX 130 types (converted based on 8mm material band)

Board loading time: 2.6sec

Machine size: L: 1280mm, W: 2346mm, H: 1556mm

Number of nozzles: 4

Capacity (cph): 12,000

Target component size (mm): 1608~15×15 Height: 6.5mm maximum

Mounting accuracy (based on the reference positioning point): ±0.040mm (3σ) cpk≧1.00

Number of nozzles: 1

Capacity (cph): 5,800

Target component size (mm): 1608~74×74 (32×100) Height: 25.4mm maximum

Mounting accuracy (based on the reference positioning point): ±0.030mm (3σ) cpk≧1.00
