Fuji placement machine AIMEX III

2023-10-10
3998

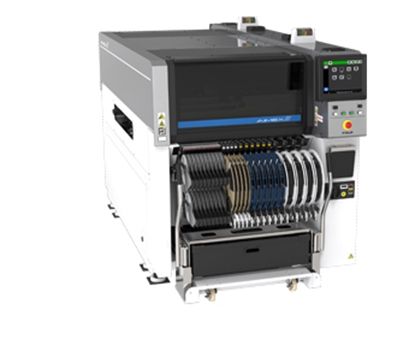

Fuji placement machine AIMEX III

Detailed introduction

characteristic:

1. Supports the production of large-size circuit boards and the simultaneous production of two products

AIMEX III can handle large circuit boards up to L774mm×W710mm.

In addition, the dual-carrying rail track specification machine can also perform parallel production of two types of circuit boards at the same time, and can cope with a wide range of circuit board sizes and production methods.



2. Highly versatile working head (0402 type component ~ 74×74mm)

The DX work head can dynamically replace special tools based on the style of components (such as chips, large-size components, irregular components).

Used together with the multi-function nozzle (Wide range nozzle), the placement efficiency can be further improved.



3. Minimize the number of line changes

The machine is equipped with a large-capacity material station with 130 troughs, which can carry all necessary components. If the MFU is used for overall line change, the line change time can be minimized.



4. The preparation time for new products to be put into production is short.

With the automatic data creation function and the on-board editing function using a large touch screen, it can quickly respond to not only the program startup of new products, but also emergency changes to components or programs.



 Picture 1.png

Technical Parameters:

Target circuit board size (L×W)

48mm×48mm~774mm×610mm (double conveyor rail specification)*

48mm×48mm~774mm×710mm (single transport rail specifications)

* When double conveying rails (W) are used, the maximum is 330 mm. When exceeding 330 mm, it will be transported by a single conveying rail.

Component type: MAX130 type (converted based on 8mm material band)

Board loading time: 2.9sec

Machine size: L: 1280mm, W: 2656mm, H: 1556mm

Dyna working head (DX):

Number of nozzles: 12

Capacity (cph): 27,000 components with or without confirmation function ON: 26,000

Target component size (mm): 0402~Diagonal size 12.5mm or less, and Y direction 7.5mm or less Height: 3.0mm or less

Mounting accuracy (based on the reference positioning point): ±0.038 (±0.050) mm (3σ) cpk≧1.00



Number of nozzles: 4

Capacity (cph): 12,000

Target component size (mm): 1608~15×15 Height: 6.5mm maximum

Mounting accuracy (based on the reference positioning point): ±0.040mm (3σ) cpk≧1.00



Number of nozzles: 1

Capacity (cph): 5,800

Target component size (mm): 1608~74×74 (32×100) Height: 25.4mm maximum

Mounting accuracy (based on the reference positioning point): ±0.030mm (3σ) cpk≧1.00
