characteristic:

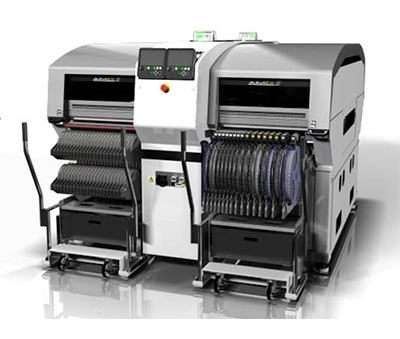

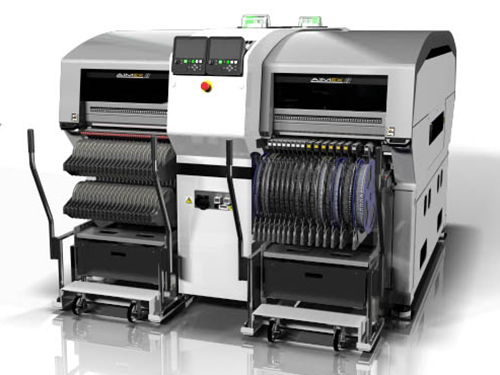

AIMEXII can choose the number of manipulators ranging from 2 to 4. Provide machines with an optimal number of robots suitable for user production volume.

Use the NPI support function to support trial products and high-variety, low-volume production. Component data can be created automatically on the machine. When creating a production program, the most time-consuming component data can be automatically created, so image processing errors that occur on the first product when starting a prototype production line or switching production types can be quickly responded to.

Dual tracks are used to correspond to independent production. The use of dual transport rails corresponds to the dual-rail production of different types of circuit boards. (option)

At this time, even if one track is in production, the other track can be changed separately. In addition, if the feeder is used at the same time to replace the cart at one time, the line change time can be reduced.

Technical Parameters:

Target circuit board size (L×W)

48mm×48mm～759mm×318mm (double conveyor rail specification/double conveyor)

48mm×48mm～759mm×586mm (double conveying rail specification/single conveying)

48mm×48mm～759mm×686mm (single transport rail specifications)

*The maximum transportable size is (L) 908mm, but circuit boards exceeding 759mm will be restricted in the placement range.

Component type: MAX180 type (converted in 8mm material band)

Circuit board loading time: Double conveying track: 0sec when double conveying, single conveying: 4.2sec Single conveying track: 4.2sec

Transport height: 900mm～950mm

Corresponding working head: V12 (V-Advance)

Number of nozzles: 12

Capacity (cph): 27,000

Target component size (mm): 0402~5.0×5.0 (angle 7.6) (when using 6 nozzles: 7.5×7.5) Height: 3.0mm maximum

Mounting accuracy (based on the reference positioning point): ±0.038 (±0.050) mm (3σ) cpk≧1.00

V12 (normal material station)

Number of nozzles: 12

Capacity (cph): 26,000

Target component size (mm): 0402~5.0×5.0 (angle 7.6) (when using 6 nozzles: 7.5×7.5) Height: 3.0mm maximum

Mounting accuracy (based on the reference positioning point): ±0.038 (±0.050) mm (3σ) cpk≧1.00

H12HS

Number of nozzles: 12

Capacity (cph): 22,500

Target component size (mm): 0402~5.0×5.0 (angle 7.6) (when using 6 nozzles: 7.5×7.5) Height: 3.0mm maximum

Mounting accuracy (based on the reference positioning point): ±0.038 (±0.050) mm (3σ) cpk≧1.00

H08M

Number of nozzles: 8

Capacity (cph): 13,000

Target component size (mm): 0603～45×45 Height: 13.0mm or more

Mounting accuracy (based on the reference positioning point): ±0.040mm (3σ) cpk≧1.00

H02

Number of nozzles: 2

Capacity (cph): 5,500

Target component size (mm): 1608～74×74 (32×180) Height: up to 25.4mm

Mounting accuracy (based on the reference positioning point): ±0.030mm (3σ) cpk≧1.00

H01

Number of nozzles: 1

Capacity (cph): 4,200

Target component size (mm): 1608～74×74 (32×180) Height: up to 25.4mm

Mounting accuracy (based on the reference positioning point): ±0.030mm (3σ) cpk≧1.00

OF

Number of suction nozzles: 1 (or 1 mechanical claw)

Capacity (cph): 3,000

Target component size (mm): 1608～74×74 (32×180) Height: up to 38.1mm

Mounting accuracy (based on the reference positioning point): ±0.050mm (3σ) cpk≧1.00

*±0.038mm is the result of mounting (high-precision adjustment) of rectangular chip components under our company's better conditions.

Dyna working head (DX):

Number of nozzles: 12

Capacity (cph): 25,000 components with or without confirmation function ON: 24,000

Target component size (mm): 0402～7.5×7.5 Height: 3.0mm maximum

Mounting accuracy (based on the reference positioning point): ±0.038 (±0.050) mm (3σ) cpk≧1.00

*±0.038mm is the result of mounting (high-precision adjustment) of rectangular chip components under our company's better conditions.

Number of nozzles: 4

Capacity (cph): 11,000

Target component size (mm): 1608～13×13 Height: 6.5mm maximum

Mounting accuracy (based on the reference positioning point): ±0.040mm (3σ) cpk≧1.00

Number of nozzles: 1

Capacity (cph): 5,000

Target component size (mm): 1608～74×74 (32×100) Height: 25.4mm maximum

Mounting accuracy (based on the reference positioning point): ±0.030mm (3σ) cpk≧1.00
