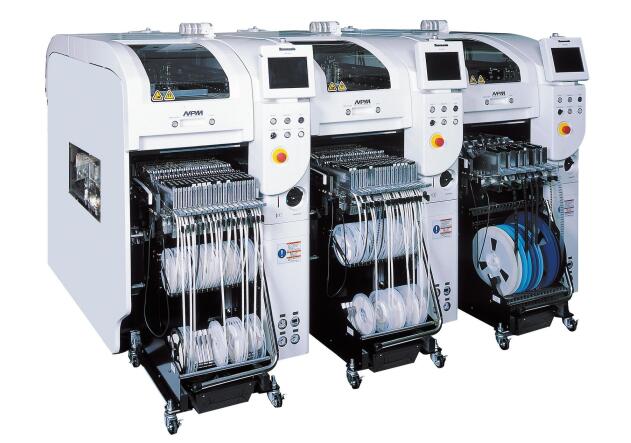

Panasonic NPM-D3 placement machine

2023-09-22
5344
Panasonic NPM-D3 placement machine

Detailed introduction

Panasonic NPM-D3 product parameters:

Model name: NPM-D3

Substrate size (mm)*1

Double rail type: L50×W50~L510×W300

Monorail type: L50×W50~L510×W590

Substrate replacement time

Dual-rail type: 0s** cannot be 0s when the cycle time is less than 3.6s.

Monorail type: 3.6s** When selecting short specification conveyor belt

Power supply: three-phase AC200,220,380,400,420,480V2.7kVA

Air pressure source*2: 0.5MPa, 100L/min (ANR)

Equipment size (mm)*2: W832×D2652*3×H1444*4

Weight: 1680kg (Main body only: Varies depending on the configuration of optional parts.)



Mounting head: 16 nozzle head (equipped with 2 cantilevers) ON high production mode

The fastest placement speed: 84000cph (0.043s/chip)

IPC9850: 63300cph*5

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*7~L6×W6×T3

Component supply:

Braiding width: 8/12/16/24/32/44/56mm

8mm tape: Max, 68 consecutive (8mm thin single-type tape rack and double-type tape rack, small reel)



Mounting head: 16 nozzle head (equipped with 2 cantilevers) OFF high production mode

The fastest placement speed: 76000cph (0.047s/chip)

IPC9850: 57800cph*5

Mounting accuracy (Cpk≧1): ±30μm/chip (±25μm/chip*6)

Component size (mm): 03015*7*8/0402 chip*7~L6×W6×T3

Component supply:

Braiding width: 8/12/16/24/32/44/56mm

8mm tape: Max, 68 consecutive (8mm thin single-type tape rack and double-type tape rack, small reel)

Placement head: 12 nozzle head (equipped with 2 cantilevers)

The fastest placement speed: 69000cph (0.052s/chip)

IPC9850: 50700cph*5

Mounting accuracy (Cpk≧1): ±30μm/chip

Component size (mm): 0402 chip*7~L12×W12×T6.5

Component supply:

Braiding width: 8/12/16/24/32/44/56mm

8mm tape: Max, 68 consecutive (8mm thin single-type tape rack and double-type tape rack, small reel)

Mounting head: 8 nozzle head (equipped with 2 cantilevers)

The fastest placement speed: 43000cph (0.084s/chip)

Mounting accuracy (Cpk≧1): ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size (mm): 0603 chip ~ L100×W90×T28

Component supply:

Braiding width: 8/12/16/24/32/44/56mm

8mm tape: Max, 68 consecutive (8mm thin single-type tape rack and double-type tape rack, small reel)

Rod shape: Max, 8 pieces, Pallet: Max. 20 pieces (1 pallet feeder)



Placement head: 2 nozzle heads (equipped with 2 cantilevers)

The fastest placement speed: 11000cph (0.327s/chip)

IPC9850: 8500cph (0.423s/QFP)

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*7~L6×W6×T3

Component supply:

Braiding width: 8~56/72/88/104mm

8mm tape: Max, 68 consecutive (8mm thin single-type tape rack and double-type tape rack, small reel)

Rod shape: Max, 8 pieces, Pallet: Max. 20 pieces (1 pallet feeder)



Panasonic placement machine NPM-D3 product features:



1. Achieve high productivity per unit area in the integrated assembly production line

Installation & inspection as a coherent system to achieve high efficiency and high quality production



2. Customers can freely choose the installation production line

The position of each working head can be freely set via plug-and-play functionality



3. Realize the overall management of production lines, production workshops, and factories through system software

Support planned production through production line operation monitoring
