Panasonic placement machine NPM-DX

2023-09-22
5320

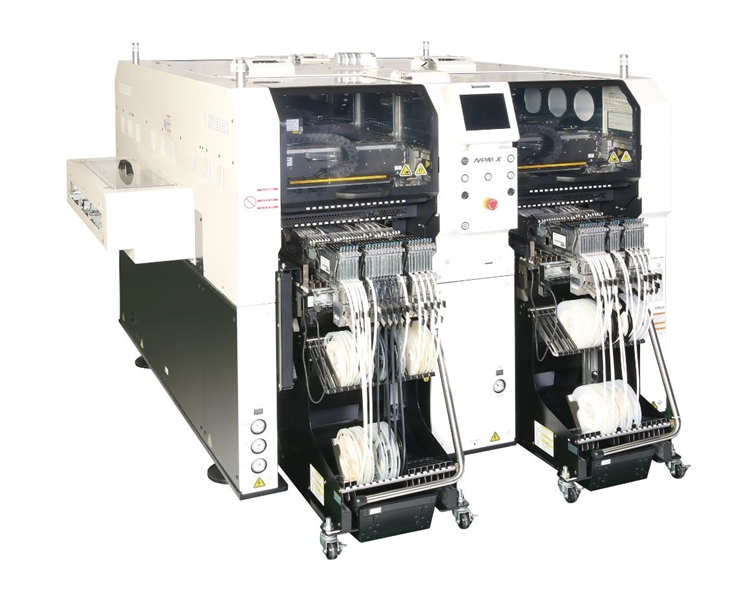

Panasonic placement machine NPM-DX

Detailed introduction

Product parameters of Panasonic SMT NPM-DX modular SMT machine:

Model name: NPM-DX

Substrate size (when selecting long specification conveyor belt):

Monorail: L50mm*W50mm~L510mm*W590mm

Double rail: L50mm*W50mm~L510mm*W300mm



Substrate replacement time (when short specification conveyor belt is selected):

Monorail: 2.1s (below L275mm)

Double rail: 4.8s (L275mm exceeds ~ L460mm below)

*The situation may vary depending on the specifications of the substrate.



Power supply: three-phase AC200,220,380,400,420,480V 5.0kVA

Air pressure source: Min.0.5Mpa, 200L/min (ANR)

Equipment size: W1665mm*D2570mmx2*H1444mmx3

Weight: 3600kg (Main body only: Varies depending on the configuration of optional parts.)



Mounting head: Lightweight 16-nozzle mounting head V2 (when equipped with 4 mounting heads)

The fastest placement speed: 184800 cph (0.0195s/square chip)

IPC9850(1608):130000cph*4

Mounting accuracy (Cpk≥1): ±25μm/square chip

Component size (mm): 0201 component*5*6/03015 component*5/0402 component*5~L6*W6*T3



Mounting head: lightweight 8-nozzle mounting head (when equipped with 4 mounting heads)

The fastest placement speed: 96000 cph (0.0375s/square chip)

Mounting accuracy (Cpk≥1): ±25μm/square chip, ±25μm/QFP 12mm~32mm, ±40μm/QFP 12mm or less

Component size (mm): 0402 component*5~L45*W45 or L100*W40*T12

Component supply

Braiding width: 4*7/8/12/16/24/32/44/56mm

4*7, 8mm tape: Max.136

Rod shape: Max.16 companies
