Panasonic NPM-W placement machine

2023-09-22
5281

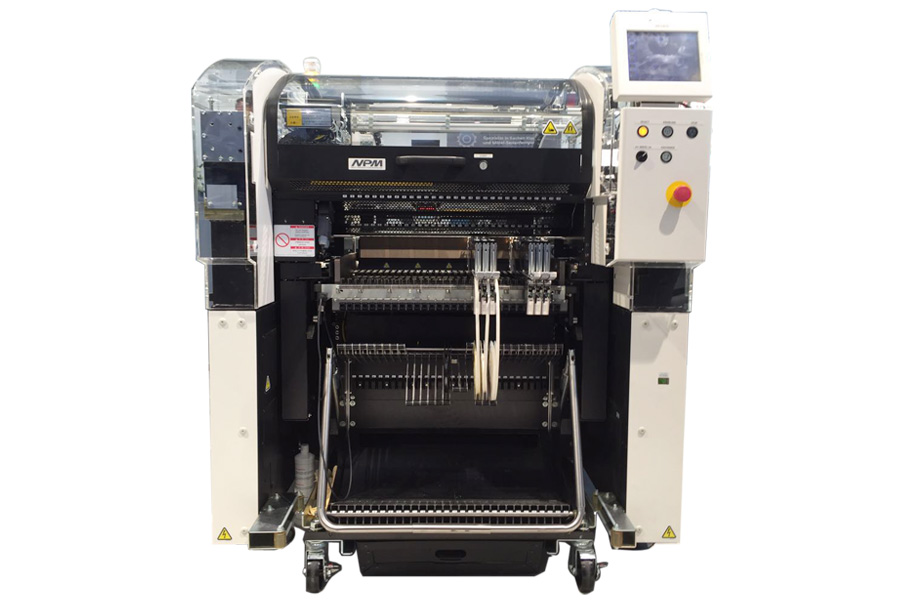

Panasonic NPM-W placement machine

Detailed introduction

Panasonic NPM-W placement machine product parameters:

Model name: NPM-W

Substrate size

Monorail*1

Overall installation: L50mm×W50mm~L750mm×W550mm

2 positions for installation: L50mm×W50mm~L350mm×W550mm

Double track*1

Monorail transmission: L50mm×W50mm~L750mm×W510mm

Dual-track transmission: L50mm×W50mm~L750mm×W260mm



Substrate replacement time

Monorail*1

Overall installation: 4.4s (when there are no components mounted on the back side of the substrate)

2 positions mounting: 2.3s (when no components are mounted on the back side of the substrate)

Double track*1

Monorail transmission: 4.4s (when no components are mounted on the reverse side of the substrate)

Dual-track transmission: 0s** cannot be 0s when the cycle time is less than 4.4s.



Power supply: three-phase AC200,220,380,400,420,480V2.5kVA

Air pressure source*2: 0.5MPa, 200L/min (ANR)

Equipment size*2: W1280mm*3×D2332mm*4×H1444mm*5

Weight: 2250kg (main body only: varies depending on the configuration of optional parts.)



Mounting head: 16 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 70000cph (0.051s/chip)

IPC9850 (1608): 53800cph*8

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*6~L6×W6×T3

Component supply tape width: 8/12/16/24/32/44/56mm

Max, 120 companies (8mm tape, double tape rack (small reel))



Mounting head: 12 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 62500cph (0.058s/chip)

IPC9850 (1608): 48000cph*8

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*6~L12×W12×T6.5

Component supply tape width: 8/12/16/24/32/44/56mm

Max, 120 companies (8mm tape, double tape rack (small reel))



Mounting head: 8 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 40000cph (0.090s/chip)

Mounting accuracy (Cpk≧1): ±40μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size (mm): 0402 chip*6~L32×W32×T12

Component supply tape width: 8~56/72mm

Specifications of front and rear exchange trolleys: Max.120 (the width of the tape and the material rack are as described on the left)

Single pallet specifications: Max.86 (the width of the tape and the material rack are as described on the left)

Double pallet specifications: Max. 60 connections (the width of the tape and the material rack are as described on the left)

Rod shape: Front and rear exchange trolley Specifications: Max.14 links

Single pallet specifications: Max.10 units

Double pallet specifications: Max.7 consecutive

Pallet: Single pallet Specifications: Max.20 units

Double pallet specifications: Max.40 units



Mounting head: 3-nozzle mounting head ※7 (when equipped with 2 mounting heads)

The fastest placement speed: 11000cph (0.33s/QFP)

Mounting accuracy (Cpk≧1): ±30μm/QFP

Component size (mm): 0603 chip ~ L150×W25 (diagonal 152)×T28

Component supply taping width: 8~56/72/88/104mm

Specifications of front and rear exchange trolleys: Max.120 (the width of the tape and the material rack are as described on the left)

Single pallet specifications: Max.86 (the width of the tape and the material rack are as described on the left)

Double pallet specifications: Max. 60 connections (the width of the tape and the material rack are as described on the left)

Rod shape: Front and rear exchange trolley Specifications: Max.14 links

Single pallet specifications: Max.10 units

Double pallet specifications: Max.7 consecutive

Pallet: Single pallet Specifications: Max.20 units

Double pallet specifications: Max.40 units



Panasonic placement machine NPM-W product features:



1. Achieve high productivity per unit area in the integrated assembly production line

Placement & Inspection - a coherent system to achieve high efficiency and high quality production



2. Can cope with large substrates and large components

Can cope with large substrates of 750×550mm, and the component range has also been expanded to 150×25mm



3. Double-track installation achieves high productivity per unit area (select specifications)

According to the production substrate, you can choose the best mounting method among "independent mounting", "alternating mounting" and "hybrid mounting"
