Panasonic NPM-W2

2023-09-22
5292

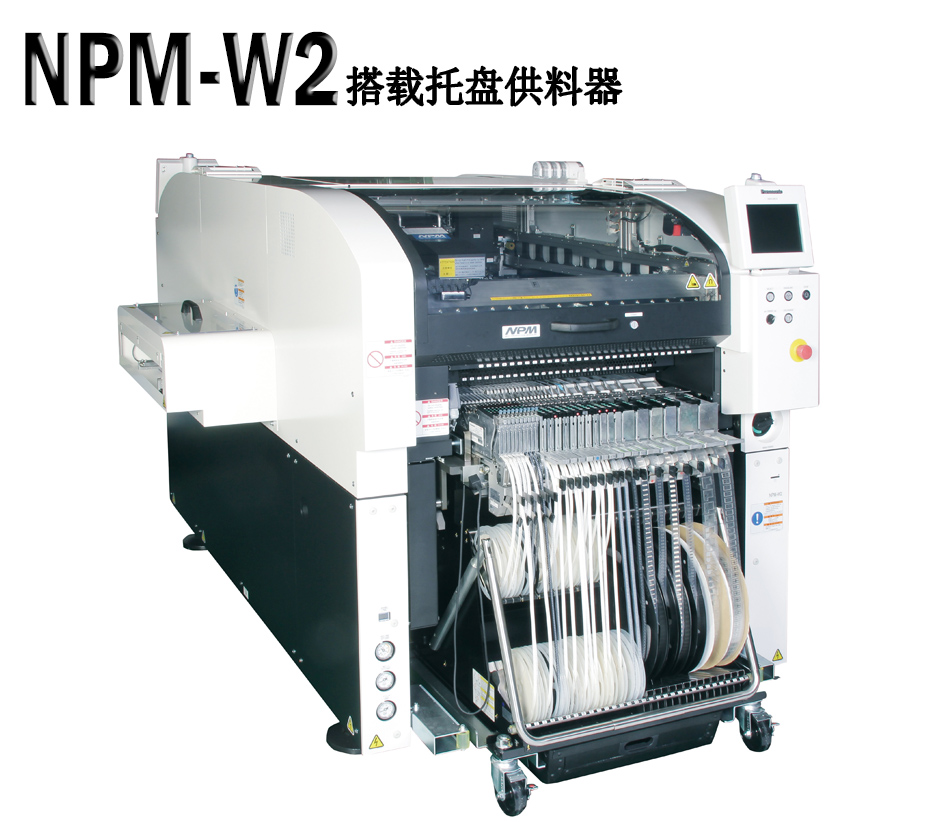

Panasonic NPM-W2

Detailed introduction

Substrate size

Monorail*1

Overall installation: L50mm×W50mm~L750mm×W550mm

2 positions for installation: L50mm×W50mm~L350mm×W550mm

Double track*1

Monorail transmission: L50mm×W50mm~L750mm×W510mm

Dual-track transmission: L50mm×W50mm~L750mm×W260mm



Power supply: three-phase AC200,220,380,400,420,480V2.8kVA

Air pressure source*2: 0.5MPa, 200L/min (ANR)

Equipment size*2: W1280mm*3×D2332mm*4×H1444mm*5

Weight: 2470kg (Main body only: Varies depending on the configuration of optional parts.)



Mounting head: 16-nozzle mounting head (when equipped with 2 mounting heads) ON high production mode

The fastest placement speed: 77000cph (0.047s/chip)

IPC9850 (1608): 59200cph*6

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*8~L6×W6×T3

Component supply tape width: 8/12/16/24/32/44/56mm

Max, 120 companies (8mm tape, double tape rack (small reel))



Mounting head: 16 nozzle mounting head (when equipped with 2 mounting heads) OFF high production mode

The fastest placement speed: 70000cph (0.051s/chip)

IPC9850 (1608): 56000cph*6

Mounting accuracy (Cpk≧1): ±30μm/chip (±25μm/chip*7)

Component size (mm): 03015*8*9, 0402 chip*8~L6×W6×T3

Component supply tape width: 8/12/16/24/32/44/56mm

Max, 120 companies (8mm tape, double tape rack (small reel))



Mounting head: 12-nozzle mounting head (when equipped with 2 mounting heads) ON high production mode

The fastest placement speed: 64500cph (0.056s/chip)

IPC9850 (1608): 49500cph*6

Mounting accuracy (Cpk≧1): ±40μm/chip

Component size (mm): 0402 chip*8~L12×W12×T6.5

Component supply tape width: 8/12/16/24/32/44/56mm

Max, 120 companies (8mm tape, double tape rack (small reel))



Mounting head: 12 nozzle mounting head (when equipped with 2 mounting heads) OFF high production mode

The fastest placement speed: 62500cph (0.058s/chip)

IPC9850 (1608): 48000cph*6

Mounting accuracy (Cpk≧1): ±30μm/chip

Component size (mm): 0402 chip*8~L12×W12×T6.5

Component supply tape width: 8/12/16/24/32/44/56mm

Max, 120 companies (8mm tape, double tape rack (small reel))



Mounting head: 8 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 40000cph (0.090s/chip)

Mounting accuracy (Cpk≧1): ±30μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less

Component size (mm): 0402 chip*8~L32×W32×T12

Component supply taping width: 8~56mm

Specifications of front and rear exchange trolleys: Max.120 (the width of the tape and the material rack are as described on the left)

Single pallet specifications: Max.86 (the width of the tape and the material rack are as described on the left)

Double pallet specifications: Max. 60 connections (the width of the tape and the material rack are as described on the left)

Rod shape: Front and rear exchange trolley Specifications: Max.14 links

Single pallet specifications: Max.10 units

Double pallet specifications: Max.7 consecutive

Pallet: Single pallet Specifications: Max.20 units

Double pallet specifications: Max.40 units



Mounting head: 3 nozzle mounting head (when equipped with 2 mounting heads)

The fastest placement speed: 11000cph (0.33s/QFP)

Mounting accuracy (Cpk≧1): ±30μm/QFP

Component size (mm): 0603 chip ~ L150×W25 (diagonal 152)×T30

Component supply taping width: 8~56/72/88/104mm

Specifications of front and rear exchange trolleys: Max.120 (the width of the tape and the material rack are as described on the left)

Single pallet specifications: Max.86 (the width of the tape and the material rack are as described on the left)

Double pallet specifications: Max. 60 connections (the width of the tape and the material rack are as described on the left)

Rod shape: Front and rear exchange trolley Specifications: Max.14 links

Single pallet specifications: Max.10 units

Double pallet specifications: Max.7 consecutive

Pallet: Single pallet Specifications: Max.20 units

Double pallet specifications: Max.40 units



Panasonic placement machine NPM-W2 product features:



1. A coherent system for placement and inspection to achieve high efficiency and high quality production

According to your installation requirements, you can choose high production mode or high precision mode.



2. Can cope with large substrates and large components

Can cope with large substrates of 750×550mm, and the component range has also been expanded to L150×W25×T30mm



3. Double-track installation (select specifications) to achieve high productivity per unit area

According to the production substrate, you can choose the best mounting method among "independent mounting", "alternating mounting" and "hybrid mounting"
