Panasonic placement machine NPM-W2

2023-10-10
5076

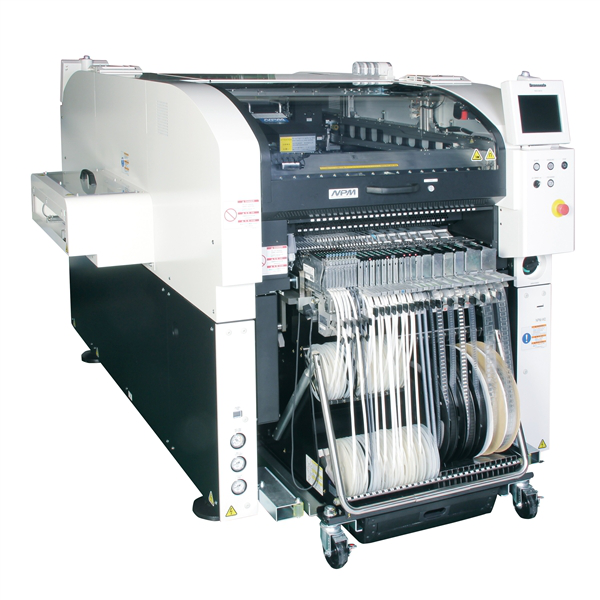

Panasonic placement machine NPM-W2

Detailed introduction

characteristic:

Panasonic placement machine NPM-W 2. Achieve a high unit area productivity in the comprehensive mounting production line. Mounting & inspection is a coherent system to achieve high efficiency and high-quality production; can cope with large substrates and large components: can cope with 750×550mm For large substrates, the component range has also been expanded to 150×25mm;




Technical Parameters:

Model name: NPM-W2

Substrate size

Monorail*1

Overall installation: L50mm×W50mm~L750mm×W550mm

2 positions for installation: L50mm×W50mm~L350mm×W550mm

Double track*1

Monorail transmission: L50mm×W50mm~L750mm×W510mm

Dual-track transmission: L50mm×W50mm~L750mm×W260mm

Power supply: three-phase AC200,220,380,400,420,480V2.8kVA

Air pressure source*2: 0.5MPa, 200L/min (ANR)

Equipment size*2: W1280mm*3×D2332mm*4×H1444mm*5

Weight: 2470kg (Main body only: Varies depending on the configuration of optional parts.)
