Panasonic placement machine NPM-W

2023-10-10
5217

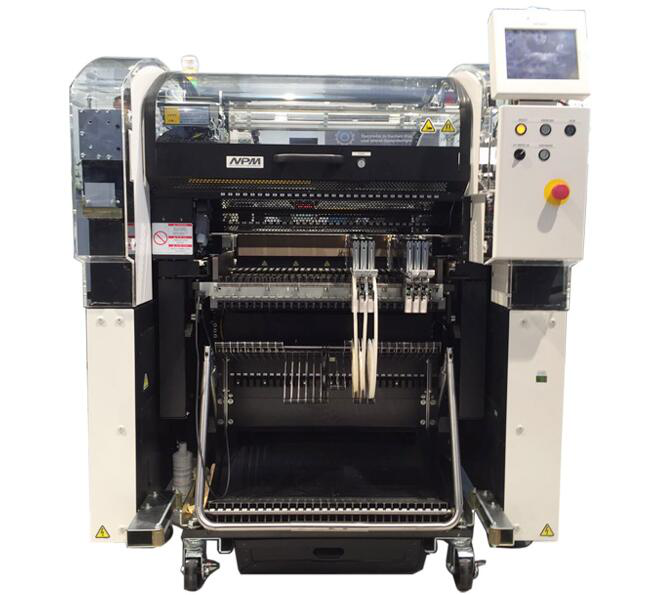

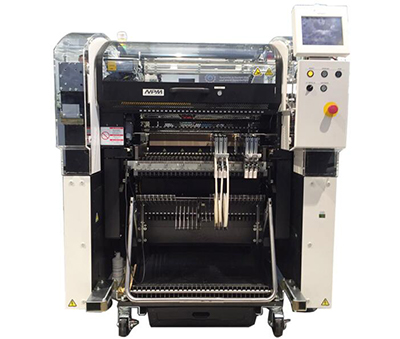

Panasonic placement machine NPM-W

Detailed introduction

characteristic:

Newly conceived equipment that responds to changes in implementation

Mounting & inspection is a coherent system to achieve high efficiency and high quality production (according to your installation requirements, you can choose high production mode or high precision mode)

Can handle large substrates and large components (can handle large substrates of 750*550mm, and the component range has also been expanded to L150*W25*T30mm)

Dual-track mounting (select specifications) achieves high productivity per unit area (according to the production substrate, you can choose the mounting method among [Independent Mounting], [Alternate Mounting], and [Hybrid Mounting])








Technical Parameters:

Substrate size

Monorail*1

Overall installation: L50mmxW50mm-L750mmxW550mm

2 positions for installation: L50mmxW50mm-L350mmxW550mm

Double track*1

Monorail transmission: L50mmxW50mm-L750mmxW510mm

Dual-rail transmission: L50mmxW50mm-L750mmxW260mm

Power supply: three-phase AC200, 220, 380, 400, 420, 480V 2.8kVA

Empty source*2: 0.5MPa, 200L/min(.)

Equipment size*2: W1280mm*3xD2332mm*4xH1444mm*5

Weight: 2470kg
