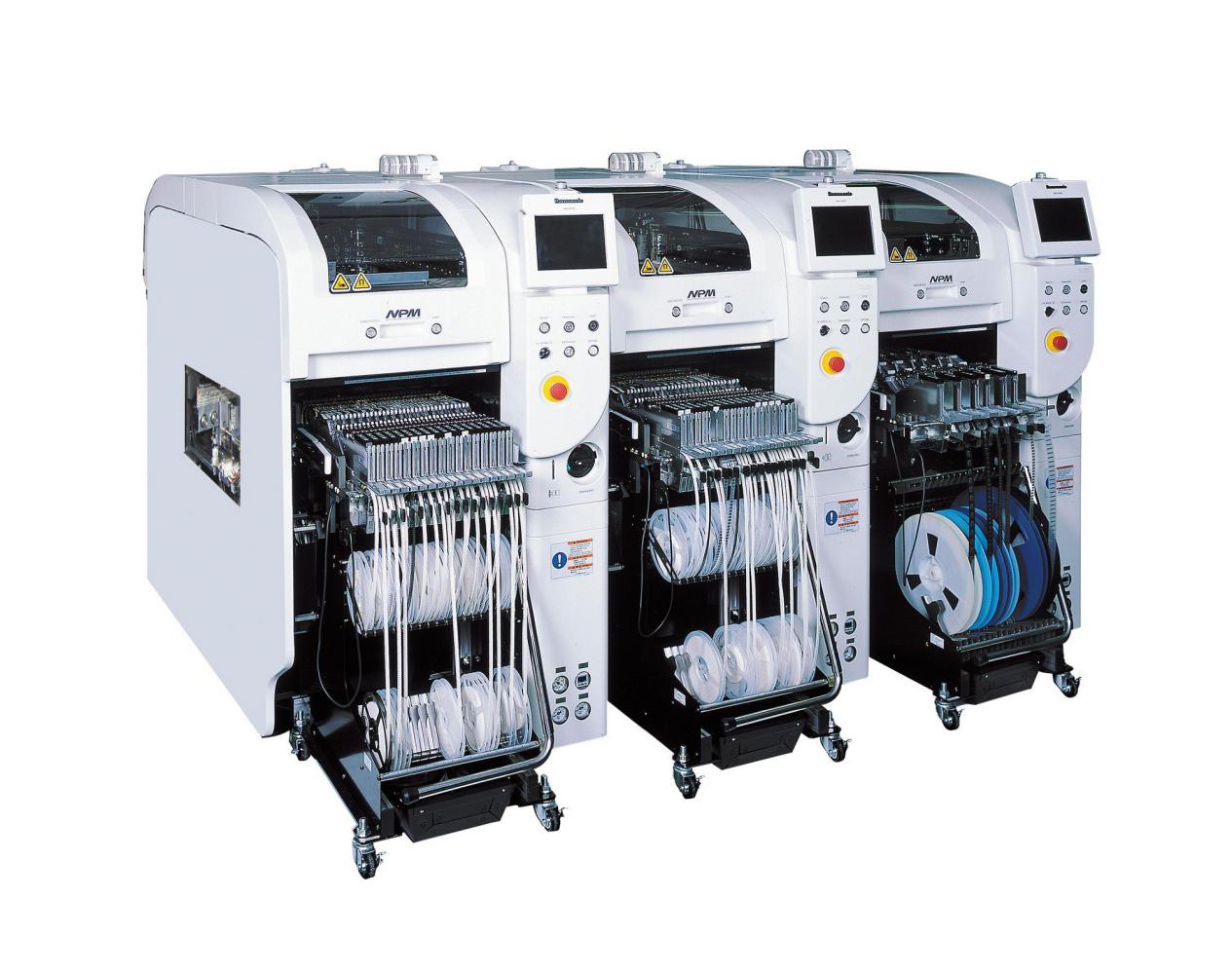

Panasonic placement machine NPM-D3

2023-10-10
5036
Panasonic placement machine NPM-D3

Detailed introduction

characteristic:

Panasonic placement machine NPM-D 3 is a new concept equipment launched by Panasonic that follows changes in placement processes. It can realize the liberalized "Plug & Play" function through the configuration of each process placement head, thereby bringing unlimited flexibility to the user's production, and achieve high efficiency and high-quality production through the system continuity of placement and inspection. . It inherits the same platform of the CM series, so it is common with the hardware of the CM series. Its operation adopts a humanized interface design and has the ability to correspond to 0402 (imperial 01005)-100*90mm components. It also has functions such as component thickness inspection and substrate bending inspection, which can greatly improve the placement quality, and fully meet customer needs for difficult processes such as POP and flexible substrates. It is an ideal choice for mobile phone, laptop computers and other high-end product processing companies. .




Technical Parameters:

Substrate size (mm)*1

Double rail type: L50×W50~L510×W300

Monorail type: L50×W50~L510×W590

Substrate replacement time

Dual-rail type: 0s** cannot be 0s when the cycle time is less than 3.6s.

Monorail type: 3.6s** When selecting short specification conveyor belt

Power supply: three-phase AC200,220,380,400,420,480V2.7kVA

Air pressure source*2: 0.5MPa, 100L/min (ANR)

Equipment size (mm)*2: W832×D2652*3×H1444*4

Weight: 1680kg (Main body only: Varies depending on the configuration of optional parts.)
