Panasonic placement machine NPM-TT

2023-10-10
5093

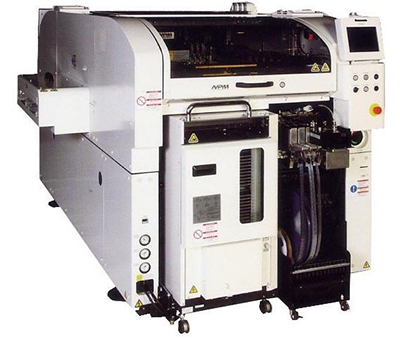

Panasonic placement machine NPM-TT

Detailed introduction

characteristic:

Panasonic NPM-TT is a more advanced high-speed module placement machine that realizes independent mounting of pallet components. It uses a 3-nozzle mounting head to increase the mounting speed of medium and large floor parts and improve the overall output of the production line. Automation of the position replacement of the support pin contributes to the realization of non-stop machine model switching, labor saving, and prevention of operating errors.

You can choose the specifications of the supply part, and the front and rear 13-station material racks are provided (fixed). Placement head (8 nozzle placement head, 3 nozzle placement head). Alternate implementation and independent implementation correspond. Can be connected directly to NPM-D.



Technical Parameters:

Corresponding component size

0402~L12mm*W12mm*T6.5mm

0402~L32mm*W32mm*T12mm

0603~L100mm*W90mm*T28mm

Board size Monorail conveyor

L50mm*W50mm~L510mm*W480mm

Double track conveyor belt

Double track

L50mm*W50mm~L350mm*W216mm

Monorail

L50mm*W50mm~L350mm*W460mm

SizeW835*D2452*H1444

Weight 1620KG
