Panasonic placement machine BM123

2023-10-11
5062
Panasonic placement machine BM123

Detailed introduction

characteristic:

Our Panasonic SMT BM123 multifunctional SMT machine has an advantage in price and guaranteed quality. Welcome to call us to discuss, view and purchase! More than 95% of the equipment comes from Europe and the United States. European and American equipment has the characteristics of less use time and good maintenance, so that the equipment can be reused for a longer life, with higher precision and better stability.

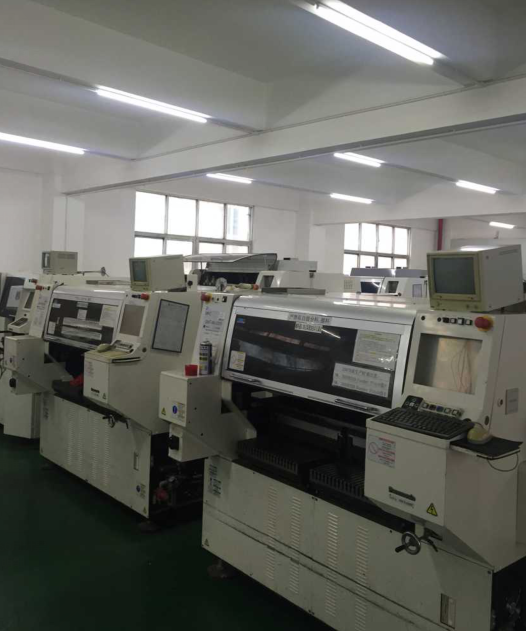

 Panasonic placement machine.png



Panasonic placement machine BM123 parameters:

Model name BM123

Model NM-EJM6B

Board size (mm) L50 × W50 ~ L330 × W250

Placement speed 0.12s/chip

Mounting accuracy ±50 ?m/chip (Cpk≥1), ±30 ?m/QFP (Cpk≥1)

The number of components loaded is 80 (double tape rack: 160)

Component size (mm)*1 0603 chip~L32 × W32 ×T15

Substrate replacement time*2 2.5s *6

Power supply three-phase AC200V, 220, 380, 400, 420, 480V, 2.68kVA

Air pressure source 0.43MPa, 150L/min (ANR)

Equipment size (mm) W1950 × D1500*3 × H1500 *4

Weight *5 1700kg (fixed supply specification)

 CHIP mounting machine BM123: Mounting speed: 0.12S/chip Chip accuracy: 50μm/3σ Component range: Metric 0603~32×32×15mm.
