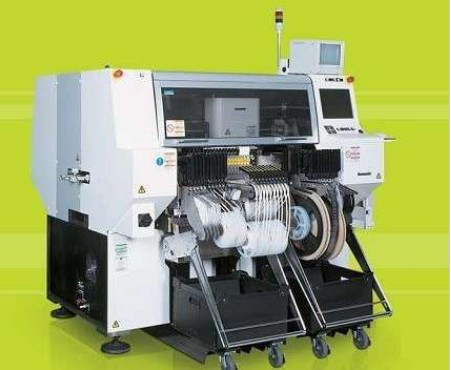

Panasonic placement machine BM133

2023-10-11
5036
Panasonic placement machine BM133

Detailed introduction

characteristic:

Panasonic SMT machine BM133 adopts an integrated casting structure that is only available on turret type machines, which greatly ensures the overall rigidity of the equipment and extends its service life. · A large number of high-standard materials are selected for material use, which reduces structural wear and improves service life. It uses a semiconductor hard drive with a capacity of 1G and a service life that is 10 times longer than that of ordinary hard drives. Designed to require disassembly and maintenance. For example: it can automatically detect the cleanliness of the nozzle before production, realizing simple and practical daily maintenance, saving time and effort, easy and effective. Using some of the above designs, the BM series equipment can achieve a service life that is more than twice as long as other similar equipment while ensuring placement accuracy.




Panasonic placement machine BM133 parameters:

Model name BM123

 Model NM-EJM6B

Board size (mm) L50 × W50 ~ L330 × W250

Placement speed 0.12s/chip

Mounting accuracy ±50 µm/chip (Cpk≥1), ±30 µm/QFP (Cpk≥1)

 Number of components loaded: 80 (double tape rack: 160)

Component size (mm)*1 0603 chip~L32 × W32 ×T15

Substrate replacement time*2 2.5s *6

Power supply three-phase AC200V, 220, 380, 400, 420, 480V, 2.68kVA

Air pressure source 0.43MPa, 150L/min (ANR)

Equipment size (mm) W1950 × D1500*3 × H1500 *4

Weight *5 1700kg (fixed supply specification)
