Panasonic placement machine BM231

2023-10-11
5183
Panasonic placement machine BM231

Detailed introduction

characteristic:

Panasonic BM231 modular high-speed multi-function placement machine has the ability to place a wide variety of components on any volume of 0402 (01005) microchips, BGA, CSP and connectors, in any combination. Excellent productivity for uninterrupted operation and quick changeovers. The BM231 is ideal for competitive manufacturing industries. The dual-drive, dual-tray integrated feeder power XY robot is supported by our rigid die-cast frame and supported by vibration control, providing a high placement speed of 0.25 seconds/chip. The BM231 provides non-stop performance tape splicing, motorized feeders and up to 120 8mm feeders and 80 pallet feeders.

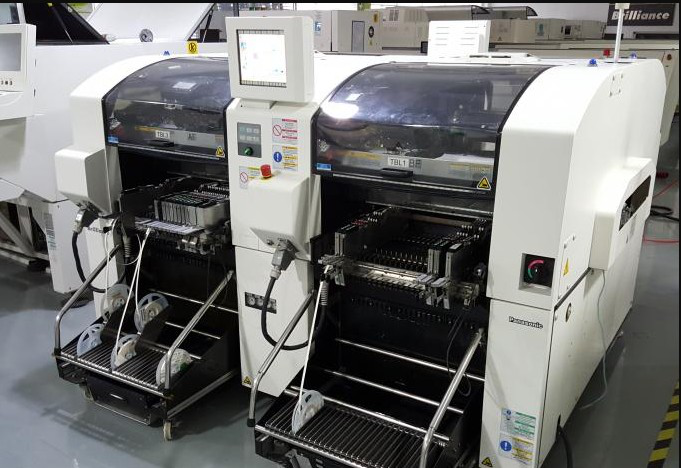

 Panasonic placement machine 231.png


Main parameters of Panasonic placement machine BM231:

Panasonic placement machine bm231, in very good condition, 2008 machine

Speed: 0.25S,

Equipped with material racks: 60 (double braided material rack 120) pallets with 80 stations

Component type:0603-55mm

Power supply: 3P/200V/8,

Overall dimensions: 1950/2060/1500mm

Weight:2000kg

Suitable component range: (01005)0402chip- L150×W25×T25 or L55×W55×T25

PCB size: 5.0S

Machine weight: 2100KG
