Panasonic placement machine CM202DS

2023-10-11
5106
Panasonic placement machine CM202DS

Detailed introduction

characteristic:

Panasonic module placement machine CM202DS has 4 arms, each arm has 5 small turret nozzle heads, a total of 20 nozzle heads, the equipment is small in size, occupies a small area, and the module placement machine has low sound , fast and very stable.

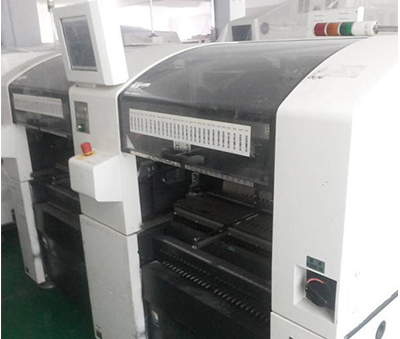

 Panasonic placement machine CM202DH1.png



Technical Parameters:

Machine model: Panasonic CM202-DS

Machine year: June 2004

PCB size: larger 360x460mm

Minimum 50*50mm,

Thickness 0.3-4mm

Placement speed: Perfect placement speed: 0.088 seconds/point 40909 (pieces/hour)

SMT accuracy: ±0.066 (mm)

SMD range: 0402-24*24*6.0mm, IC, BGA, QFP

Equipped with feed rack: Equipped with 26*4, a total of 104 stations (8mm feeder)

Power supply: 3-phase 200V 2.5KVA

Air flow: 0.5MPa 400L/Min

Overall dimensions: Length (L): 2350mm

Width (W): 1950mm

Height (H): 1430mm

Machine weight: about 2800Kg
