Panasonic placement machine CM202DH

2023-10-11
5147

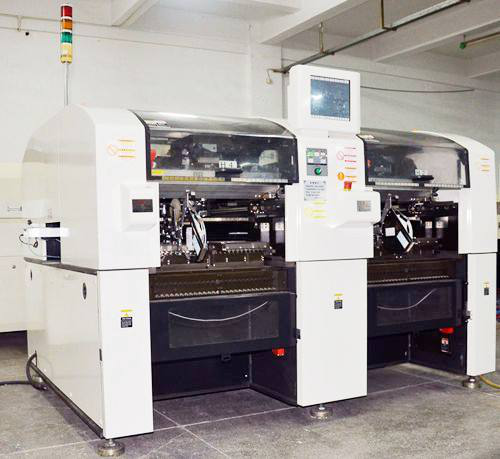

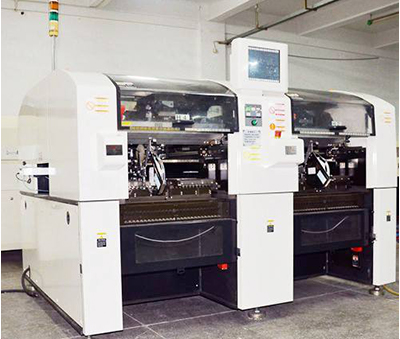

Panasonic placement machine CM202DH

Detailed introduction

characteristic:

The Panasonic chip placement machine CM202 DH can mount micro chips to special-shaped components, and can choose better modules according to the product and production volume. High-speed 12 nozzles expand component range. The high-speed placement head (12 nozzles) expands the component range to 2.4 times compared to the past. It enables components from tiny to □12 mm. High-speed placement of parts. Universal 8 nozzles improve component response capabilities. The universal placement head (8 nozzles) can be equipped with a three-dimensional sensor and a direct pallet feeder as a new function, improving the ability to cope with special-shaped components. The universal placement head (8 nozzles) expands the conventional component range to □32 mm. In addition, the nozzle replacement function during operation enables high-speed placement of large components. The miniaturization of the trolley improves productivity per unit area.




Technical Parameters:

Speed: 0.12S, 20000 points/hour

Equipped with material rack: 104 stations

Component types: 0402, 0603-24mmQFP, BGA, PLCC

Power supply: 3P/200V/

Overall dimensions: 2200/1950/1565mm

Weight:1800kg
