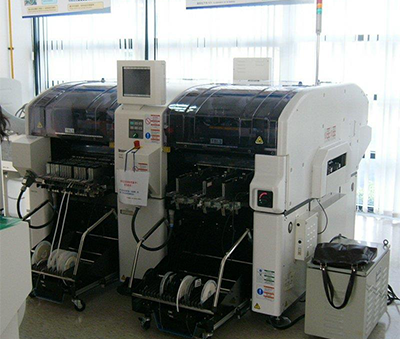

Panasonic placement machine CM602-L

2023-10-11
5185
Panasonic placement machine CM602-L

Detailed introduction

characteristic:

Panasonic SMT CM602-L high-speed module placement machine not only uses the original module of Panasonic SMT CM402, but also adds a 12-nozzle high-speed head and a direct suction tray according to needs, expanding the original 8 suction nozzles. The function of the nozzle high-speed placement head, coupled with the 3-nozzle multi-function head with pressure control function, allows up to 10 different module combinations, realizing modularization in the true sense, allowing customers to combine them at will Match.





Technical Parameters:

Board size L 50 mm × W 50 mm ~ L 510 mm × W 460 mm

High-speed placement head with 12 nozzles

Placement speed 100 000 cph (0.036 s/chip)

Mounting accuracy ±40 μm/chip (Cpk ≧1) www.smt11.cn

Component size 0402 chip *5 ~ L 12 mm × W 12 mm × T 6.5 mm

Universal placement head LS 8 nozzles

Placement speed 75 000 cph (0.048 s/chip)

Mounting accuracy ±40 μm/chip, ±35 μm/QFP ≧ 24 mm, ±50 μm/QFP <□24 mm (Cpk ≧1)

Component size 0402 chip *5 ~ L 32 mm × W 32 mm × T 8.5 mm *8

When general-purpose Ver.5 is optional, 0402 chip *5 ~ L 100 mm × W 50 mm × T 15 mm *6

Multifunctional placement head with 3 nozzles

Placement speed 20 000 cph (0.18 s/QFP)

Mounting accuracy ±35 μm/QFP (Cpk ≧1)

Component size 0603 chip ~ L 100 mm × W 90 mm × T 25 mm *7

Substrate replacement time m0.9 s (when the substrate length is 240 mm or less)

Power supply three-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA

Air pressure source*1m0.49 MPa, 170 L/min (ANR)

Equipment size mW 2 350 mm × D 2 290 mm *2 × H 1 430 mm *3

Weight*4m3 400 kg
