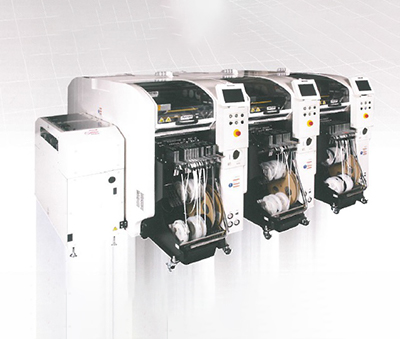

Panasonic placement machine NPM-D

2023-10-11
5770
Panasonic placement machine NPM-D

Detailed introduction

characteristic:

Panasonic SMT machine NPM-D: Achieve high productivity per unit area in a comprehensive assembly production line. Customers can freely select production lines and achieve overall management of production lines, production workshops, and factories through system software.


Technical Parameters:

Panasonic placement machine NPM-D

Working heads: 16 nozzle heads, 12 nozzle heads, 8 nozzle heads, 2 nozzle heads

Substrate size: Double rail: 50*50mm - 510*300mm Single rail: 50*50mm - 510*590mm

Power supply: three-phase ac200, 220, 380, 420, 480v, 2.5kva

Air pressure: 0.5mpa 5. Equipment size: 835*2652*1444mm

Weight: 1520kg

SMT speed: 16 nozzle placement head (when equipped with 2 placements) 70 000cph (0.051s/chip) 12 nozzle placement head (when equipped with 2 placements) 62 500cph (0.058s/chip) 8 suction Nozzle placement head (when equipped with 2 placement units) 40 000cph (0.090s/chip) 2-nozzle placement head (when equipped with 2 placement units) 85 000cph (0.423s/chip)

Component size: 0402-t3mm

Component supply: braiding width 8, 12, 16, 24, 32, 44, 56mm rod-shaped, pallet: max, 8 sets, pallet: max 20 pieces (1 pallet supplier).
