Panasonic placement machine IPAC-CS

2023-10-11
5387

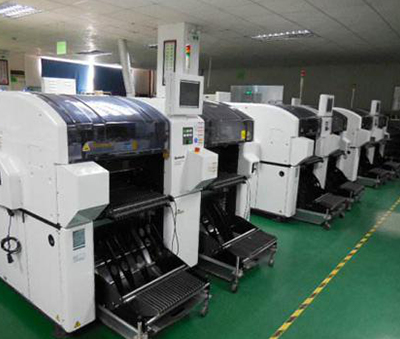

Panasonic placement machine IPAC-CS

Detailed introduction

characteristic:

Panasonic SMT IPAC-CS high-speed SMT machine comes from abroad. The SMT Panasonic placement machine IPAC-CS there, because of its short use time and good maintenance, the equipment can be reused for a longer life, with higher precision and better stability.


Main parameters of Panasonic placement machine IPAC-CS:

Suitable for placement products

SMT processing, MID, mobile phones, digital, consumer electronics.

PCB size: 323×146mm

Placement speed: 0.1SEC

SMT accuracy: ±0.05mm

Patch stations: 48

Capacity assessment

Component range: 0201-24mm QFP, PLCC, SOP, BGA, etc.

Theory: 36,000 components/hour

Actual: about 25,200 components/hour

Equipment size: 980*1660*1650mm
