Number of cantilevers: 4

IPC speed: 125,000cph

SIPLACE Benchmark: 150,000cph

Theoretical speed: 200,000cph

Machine size: 1.9x2.3m

Placement head characteristics: SpeedStar

Component range: 0201 (metric)-6x6mm

Mounting accuracy: ±36μm/3σ

Angular accuracy: ±0,5°/3σ

Maximum component height: 4mm

Mounting force: 1,3-4,5 Newtons

Conveyor belt type: single track, flexible double track

Conveyor mode: asynchronous, synchronous, independent placement mode

PCB format: 50x50mm-610x510mmmax

PCB thickness: 0,3-4,5mm (other sizes can be customized upon request)

PCB weight: 3kg more

Component supply and material supply

Feeder capacity: 148 8mmX feeder modules

Feeder module type:

SIPLACE component cart, SIPLACE matrix tray feeder (MTC) 4, waffle tray (WPC5/WPC6) 4, JTF-S/JTF-MSIPLACE, X feeder,

Tray plate, vibrating tube, vibrating feeder, customized OEM feeder module

Pickup rate: ≥99,95%

DPM rate: ≤3dpm

Lighting level: Level 6 illumination

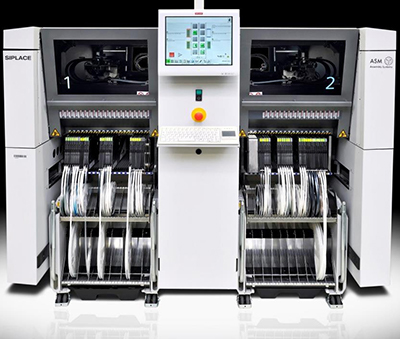

Siemens placement machine SIPLACE X4i S product features:

ASM performs professional maintenance within the recommended range and intervals to ensure that SIPLACE equipment provides specified performance and accuracy throughout its life cycle.

Our diverse maintenance contracts make the job easier.

1Only for device body

2Use SIPLACE powerful placement head to provide greater 30N placement pressure

3 Extended input and output rails allow board lengths up to 850mm

4Only available for SIPLACEX2S, X3S and X4S - not applicable for SIPLACEX4iS

5 cannot be combined in the same placement area

6Based on evaluation criteria

SIPLACEX: Top SMT production line

Many electronic product manufacturers believe that wherever the nominal values of the SIPLACEX series can achieve the required greater speed and

Accuracy (applicable to mobile phones, tablets, laptops, LED placement, etc.).

Provide customers with the highest speed, lower dpm, stable 0201 (metric) processing capabilities, non-stop setting conversion and rapid new product introduction and other functions.

The SIPLACEX series has a modular cantilever function and can provide 2, 3 or 4 cantilevers.

incredible? We look forward to hearing from you - comparing equipment from other manufacturers.

Learn how the SIPLACEX series optimizes special production processes, how to quickly recover investment, and other competitive advantages it has.
