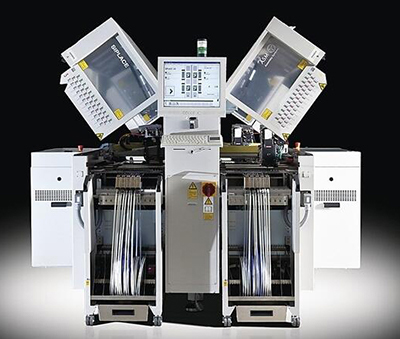

Siemens placement machine SIPLACE D2i machine parameters:

Number of cantilevers: 2

Number of placement heads: 2

IPC speed: 27.200cph

SIPLACE Benchmark: 31.000cph

Theoretical speed: 40.500cph

Component range (mm²): 01005to27x27

Placement head characteristics: Pick&Placehead

Mounting accuracy: ±30μm/3σ

Angular accuracy: ±0,053μm/3σ

Conveyor belt type: SIPLACE single track, flexible double track

Conveyor mode: asynchronous, synchronous

PCB size: 50x50mm²-610x508mm²

PCB thickness: 0,3-4,5mm² (other sizes can be customized upon request)

PCB weight: 3kg more

Feeder capacity: 90 3x8mmS feeders

Feeder module type: SIPLACE waffle tray (WPW), SIPLACE feeder truck

Pickup rate: ≥99,95%1

DPM rate: ≤5dpm2

Lighting level: Level 6 illumination

1 cannot be combined in the same placement area

2According to evaluation criteria

Product features of Siemens placement machine SIPLACE D2i:

SIPLACEDi: better balance

Thanks to the perfect combination of technological innovation and mature technology, the SIPLACEDi series with digital imaging systems has gained a reputation for cost-effectiveness.

In terms of performance and precision, SIPLACEDi uses innovative technologies that were previously only available on our high-end solutions, including: digital SIPLACE imaging system, SIPLACE flexible dual-rail system and our powerful SIPLACE software.

In addition, in terms of investment and operating costs, SIPLACEDi relies on its proven placement head, stable SIPLACES-feeder and its powerful linear drive.

With the above advantages, SIPLACEDi has unparalleled excellent cost performance in the industry and is extremely attractive to existing and potential users. Its outstanding flexibility and placement quality (01005 capability) make the SIPLACEDi series an ideal platform for highly mixed production environments in the standard and high-performance market segments
