Siemens D3 placement machine

2023-09-21
5546
Siemens D3 placement machine

Detailed introduction

Siemens placement machine D3, siplace SIPLACE D3 multi-function placement machine


The new SIPLACE D3 combines greater flexibility with high speed. Equipped with a SIPLACE double head, the SIPLACE D3 can quickly handle components up to 200 mm long and up to 25 mm high with placement pressures of up to 30 Newtons. SIPLACE D3 can even mount large THT connectors.


Main technical parameters of Siemens D3, siplace SIPLACE D3 placement machine:


Technical data:

The theoretical performance value can reach 61,000CPH

IPC value can reach 37,600CPH

Accuracy±22μm,±0.05゚@3

PCB size single rail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 430mm

PCB thickness standard 0.3 to 4.5mm (others available on request)

Supply capacity: 180 8mm rails

Component range 0201" - 200 x 125mm

Quality pickup rate: >/= 99.95%

DPM rate: Set power supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) - 10bar (1.0MPa)

Larger size 2380 x 2815 x 2112mm (length x height x width)

Mass 3790kg (basic machine with 4 feeders)

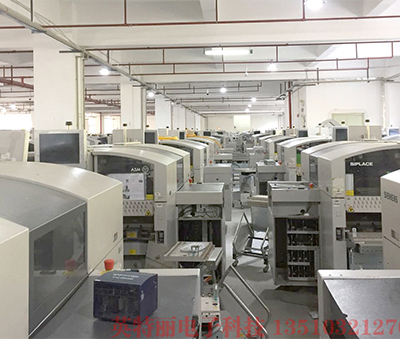

All our SMT equipment comes from Japan or Europe. The SMT equipment there has less usage time and good maintenance, so the equipment can be reused for a longer life, with higher precision and better stability. Therefore, it is favored by SMT buyers.


We have about 40 after-sales service engineers to serve customers 24 hours a day. The spare parts warehouse stores a large number of replaceable parts. The electronic maintenance department can help customers repair to the board level. Respond to customers at any time and respond to their needs.
