Siemens D4 placement machine

2023-09-21
5519

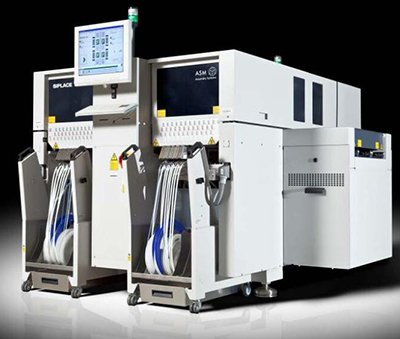

Siemens D4 placement machine

Detailed introduction

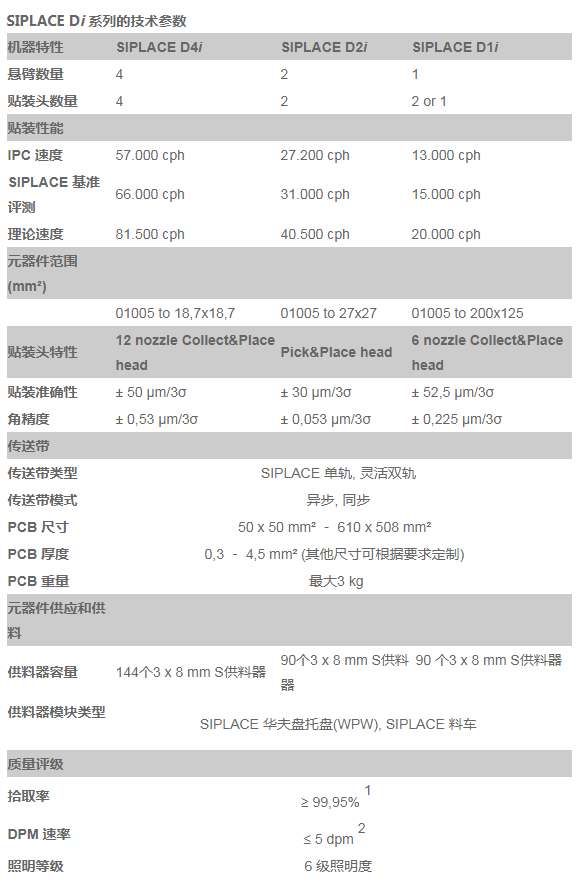

Siemens placement machine SIPLACE D4i machine parameters:



Number of cantilevers: 4

Number of placement heads: 4

IPC speed: 57.000cph

SIPLACE Benchmark: 66.000cph

Theoretical speed: 81.500cph

Component range (mm²): 01005 to18,7x18,7

Placement head characteristics: 12nozzleCollect&Placehead

Mounting accuracy: ±50μm/3σ

Angular accuracy: ±0,53μm/3σ

Conveyor belt type: SIPLACE single track, flexible double track

Conveyor mode: asynchronous, synchronous

PCB size: 50x50mm²-610x508mm²

PCB thickness: 0,3-4,5mm² (other sizes can be customized upon request)

PCB weight: 3kg more

Feeder capacity: 144 3x8mmS feeders

Feeder module type: SIPLACE waffle tray (WPW), SIPLACE feeder truck

Pickup rate: ≥99,95%1

DPM rate: ≤5dpm2

Lighting level: Level 6 illumination


1 cannot be combined in the same placement area

2According to evaluation criteria
