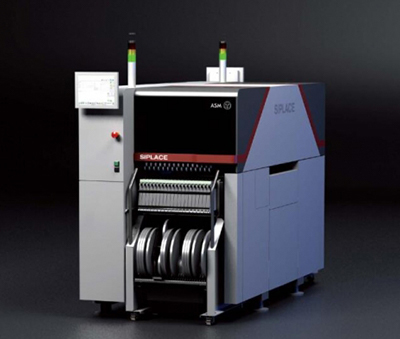

Siemens TX1 placement machine

2023-09-21
5397
Siemens TX1 placement machine

Detailed introduction

Siemens placement machine SIPLACE TX1 machine parameters:


Number of cantilevers: 1

IPC speed: 32,500cph

SIPLACE Benchmark: 37,500cph

Theoretical speed: 50,200cph

Machine size: length x width x height: 1.0x2.3x1.45*m

Placement head characteristics: SIPLACEspeedStar

Component range: 0201 (metric)-6x6mm

Mounting accuracy: ±30μm/3σ~±25μm/3σwithHPF**

Angle accuracy: ±0.5°/3σ

Maximum component height: 4mm

Mounting pressure: 1.3-4.5N

Conveyor belt type: flexible double-track conveyor

Conveyor mode: asynchronous, synchronous, independent placement

PCB format: Flexible dual-rail transmission: 45x45mm-375x260mm

Dual-rail transfer in single-rail mode (optional): 45x45mm-375x460mm

PCB thickness: 0.3mm-4.5mm

PCB weight: 2.0kg maximum

Larger conveyor slot: 80 8mm X feeder positions


Feeder module types: SIPLACE intelligent tape feeder, SIPLACE linear dip feeder, SIPLACE dispensing feeder, SIPLACEJTF-ML***


Professional maintenance provided by ASM will ensure that your SIPLACE equipment operates well throughout its life cycle. We offer a variety of service contracts to simplify your job


Product features of Siemens placement machine SIPLACE TX1:


SIPLACETX: high performance and precision in a very small footprint


SIPLACETX placement modules set new standards for high-volume production. No other placement solution can achieve 25µm@3sigma accuracy and speeds up to 78,000cph in such a small footprint (only 1m x 2.3m). You can place the next generation's smallest components (0201 metric = 0.2 mm x 0.1 mm) at the same speed as any other component.


At just 1 meter wide (equivalent to 3.3 feet), single and double boom machines can be flexibly adjusted in the production line. The improved new generation SIPLA SpeedStar placement head always provides high performance and greater precision placement. In conjunction with the SIPLACEMultiStar and SIPLACETwinStar placement heads, you can handle most components.


SIPLACETX placement modules are programmed with SIPLACE Software Suite and are equipped with matching feeder options and our dual guide rails to support efficient high-volume production, non-stop product changeovers and today's more advanced production concepts.
