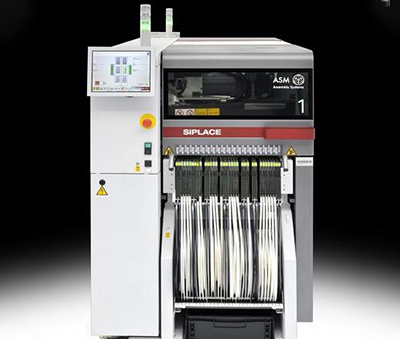

Siemens placement machine TX2

2023-09-21
4934
Siemens placement machine TX2

Detailed introduction

Siemens placement machine TX2 machine parameters:


Number of cantilevers: 2

IPC speed: 65,000cph

SIPLACE Benchmark: 75,500cph

Theoretical speed: 100,500cph

Machine size: length x width x height: 1.0x2.3x1.45*m

Placement head features: SIPLACE MultiStar

Component range: 01005-50x40mm

Mounting accuracy: ±40μm/3σ(C&P)~±34μm/3σ(P&P)

Angle accuracy: ±0.4°/3σ(C&P)~±0.2°/3σ(P&P)

Maximum component height: 11.5mm

Mounting pressure: 1.0-10N

Conveyor belt type: flexible double-track conveyor

Conveyor mode: asynchronous, synchronous, independent placement

PCB format: Flexible dual-rail transmission: 45x45mm-375x260mm

Dual-rail transfer in single-rail mode (optional): 45x45mm-375x460mm

PCB thickness: 0.3mm-4.5mm

PCB weight: 2.0kg maximum

Larger conveyor slot: 80 8mm X feeder positions

Feeder module types: SIPLACE intelligent tape feeder, SIPLACE linear dip feeder, SIPLACE dispensing feeder, SIPLACEJTF-ML

Professional maintenance provided by ASM will ensure that your SIPLACE equipment operates well throughout its life cycle.

We offer a variety of service contracts to simplify your job
