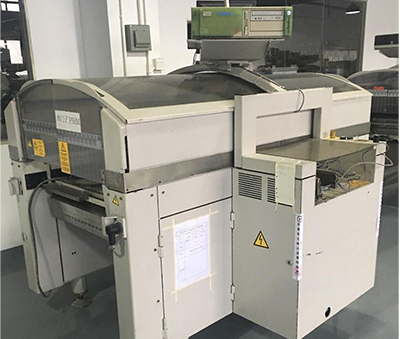

Siemens placement machine F4

2023-10-10
5308次
Siemens placement machine F4

详细介绍


Siemens placement machine F4

a brief introdction:

Siemens SMT F4: The Siemens SMT F4 is a multi-functional SMT machine. It is mainly used for mounting high-precision components such as IC, BGA, strips and other components. The F4 Siemens SMT machine is currently very cost-effective.

Details description:


Equipment name: Siemens placement machine F4, Siemens placement machine, F4 second-hand placement machine

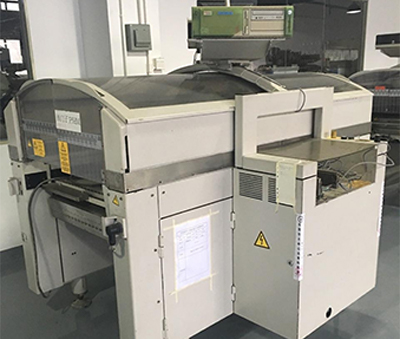

Siemens placement machine F4
1. Placement head type: 12 nozzle collection placement head and 1 IC placement head each
2. Number of cantilevers : 1
3. *High placement accuracy: 12 nozzle rotating head: 67.5um/3sigma or 90um/4sigma
                IC placement head: 37.5um/3sigma or 50um/4sigma
4. Equipment appearance (LxWxH): 1587x2425x1836mm (including 830mm transmission Height)
5. SMT range: 12 nozzle mounting head--0402 to 18.7 x 18.7 mm2
            IC mounting head--maximum 55x55mm special-shaped components, including: BGA, uBGA, etc.
6. SMT speed (theoretical value) : 12 nozzles placement head: 10000 pieces/hour
                     IC head: 1800 pieces/hour
7. Material rack support: 118 pieces, 8mm tape
8. Compressed air requirements: 5.5~10bar, 250Nl/min, pipe diameter 1/ 2"
9. Feeder system type: tape (8-44mm) tube feeder, bulk box feeder, waffle tray feeder (WPC), manual tray feeder
10. Power supply voltage: 230 /400V, 50/60Hz
