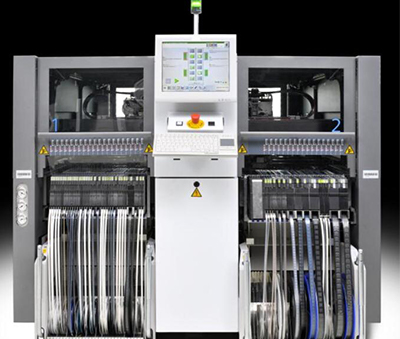

Siemens SX4 machine parameters:

Number of cantilevers: 4

IPC speed: 102,000cph

SIPLACE Benchmark: 120,000cph

Theoretical speed: 135,000cph

Machine size: 1.9x2.5m

Placement head features: TwinStar

Component range (mm²): 0201"-200x125mm

Mounting accuracy: ±22μm/3σ

Angle accuracy: ±0.05°/3σ

Maximum component height: 11,5mm

Mounting force: 1,0-10 Newtons

Conveying type: flexible double track, four lanes

Conveying mode: asynchronous, synchronous, independent placement mode

PCB version size: 50x50mm-larger 450x560mm

PCB thickness: 0.3-4.5mm

PCB weight: 5kg maximum

Feeder capacity: 148 8mmX feeders

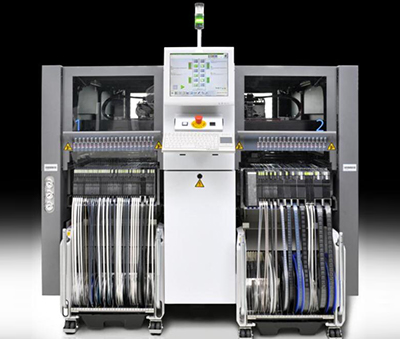

 Product features of Siemens placement machine SIPLACE SX4:

SIPLACESX series: placement solution for small batch and multi-variety SMT production

The SIPLACESX series focuses on scalability and flexibility. Customers can quickly introduce new products, quickly change settings without shutting down the line, and can produce products of any batch size.

Improve availability and efficiency. Whether for automotive, automation, medical, telecommunications or IT infrastructure – the SIPLACESX series meets quality, workmanship and

All requirements such as reliability and speed.

The SMT production line can be expanded as needed.

With its unique exchangeable cantilevers, SIPLACESX is a placement solution that can be fully expanded according to needs. Increase production capacity when needed and reduce production capacity when order volumes decrease.

We call it SIPLACE on-demand expansion.
