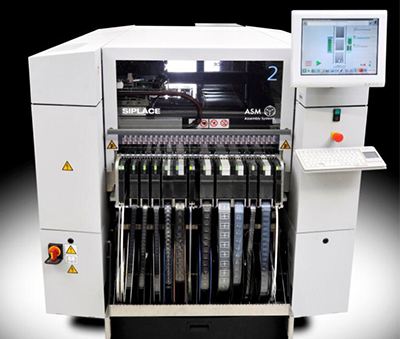

Siemens SX2 placement machine

2023-10-10
5439

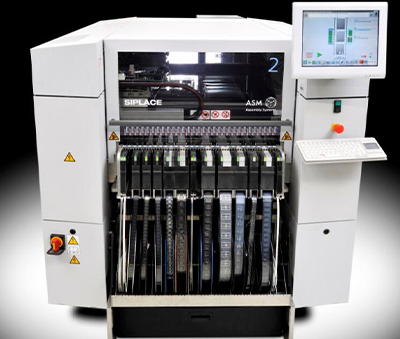

Siemens SX2 placement machine

Detailed introduction


Siemens placement machine SX2 machine parameters:

Number of cantilevers: 2

IPC speed: 59,000cph

SIPLACE Benchmark: 74,000cph

Theoretical speed: 86,900cph

Machine size: 1.5x2.4m

Placement head features: MultiStar

Component range (mm²): 01005-50x40mm

Mounting accuracy: ±41μm/3σ(C&P)~±34μm/3σ(P&P)

Angle accuracy: ±0.2°/3σ(C&P)~±0.1°/3σ(P&P)

Maximum component height: 11,5mm

Mounting force: 1,0-10 Newtons

Conveying type: single track, flexible double track

Conveying mode: asynchronous, synchronous, independent placement mode

PCB version size: 50x50mm-larger 850x560mm

PCB thickness: 0.3-6.5mm

PCB weight: 3kg more

Feeder capacity: 120 8mmX feeders


Product features of Siemens placement machine SIPLACE SX2:

SIPLACESX series: placement solution for small batch and multi-variety SMT production

The SIPLACESX series focuses on scalability and flexibility. Customers can quickly introduce new products and quickly change settings without shutting down the line.

Products can be produced in any batch size, improving availability and efficiency.

Whether for automotive, automation, medical, telecommunications or IT infrastructure – the SIPLACESX series meets quality,

All requirements including process reliability and speed.


Want to expand your SMT production line as needed?

With its unique exchangeable cantilevers, SIPLACESX is a placement solution that can be fully expanded according to needs. Increase production capacity when needed,

Reduce production capacity when order volume decreases. We call it SIPLACE on-demand expansion.
