Siemens SX1 placement machine

2023-10-10
5436

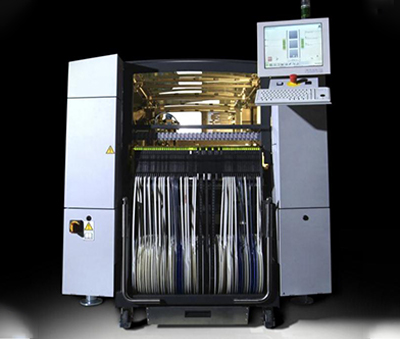

Siemens SX1 placement machine

Detailed introduction


Siemens placement machine SIPLACE SX1 machine parameters:

Number of cantilevers: 1

IPC speed: 29,500cph

SIPLACE Benchmark: 37,000cph

Theoretical speed: 43,450cph

Machine size: 1.5x2.4m

Placement head characteristics: SpeedStar

Component range (mm²): 0201 (metric)-6x6mm

Mounting accuracy: ±41μm/3σ

Angle accuracy: ±0.5°/3σ

Maximum component height: 4mm

Mounting force: 1,3-4,5 Newtons

Conveying type: single track, flexible double track

Conveying mode: asynchronous, synchronous, independent placement mode

PCB version size: 50x50mm-larger 850x560mm

PCB thickness: 0.3-6.5mm

PCB weight: 3kg more

Feeder capacity: 120 8mmX feeders



Product features of Siemens placement machine SIPLACE SX1:

SIPLACESX series: placement solution for small batch and multi-variety SMT production

The SIPLACESX series focuses on scalability and flexibility. Customers can quickly introduce new products, quickly change settings without shutting down the line, and can produce products of any batch size.

Improve availability and efficiency. Whether for automotive, automation, medical, telecommunications or IT infrastructure – the SIPLACESX series meets quality,

All requirements including process reliability and speed.

Want to expand your SMT production line as needed?

With its unique exchangeable cantilevers, SIPLACESX is a placement solution that can be fully expanded according to needs. Increase production capacity when needed and reduce production capacity when order volumes decrease.

We call it SIPLACE on-demand expansion.
