Siemens placement machine F5HM

2023-10-10
5497

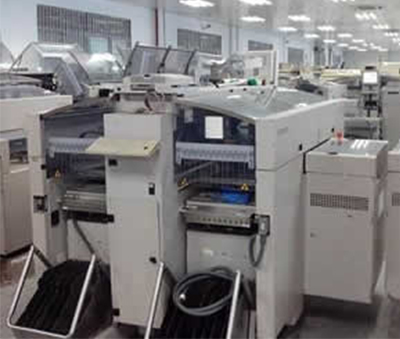

Siemens placement machine F5HM

Detailed introduction

characteristic:

Siemens placement machine F5HM  provides better cost performance and performance space ratio. The use of the latest technology achieves higher placement quality, intelligent loading, production and line change solutions, and rapid new product introduction functions.






Siemens F5HM placement machine technical parameters

Number of cantilevers: 1

Nominal placement rate: 11,000 BE/h (12 placement heads)

                       8,500 BE/h (6 placement heads)

                       1,800 BE/h (IC placement head)

Component range: 0.6X0.3mm2 (0201) to 55X55mm2

Higher placement accuracy: 90um (4sigma) 12 placement heads

                        60um (4sigma) 6 placement heads

                      40um (4sigma) IC placement head

F5HM Siemens placement machine printed circuit board size: (L * W)

Monorail 50X50mm2 to 508X460mm2 2"X2" to 20"X18"

 Double track 50X50mm2 to 460X216mm2 2"X2" to 8.5"X18"

Feeder capacity: 118 rails, 8mm belt



Shenzhen Topco Electronic Equipment Co., Ltd. specializes in providing the following SMT equipment to electronic manufacturers:

MPM printing press DEK printing press, Koh Young  SPI AOI

Panasonic placement machine Fuji placement machine , Siemens placement machine, placement machine rental

Meilu AOI , Vitronics Soltec reflow soldering , BTU reflow soldering, HELLER reflow soldering

The entire SMT production line equipment, as well as spare parts, services and solutions.
