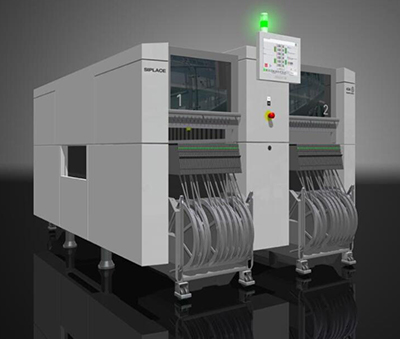

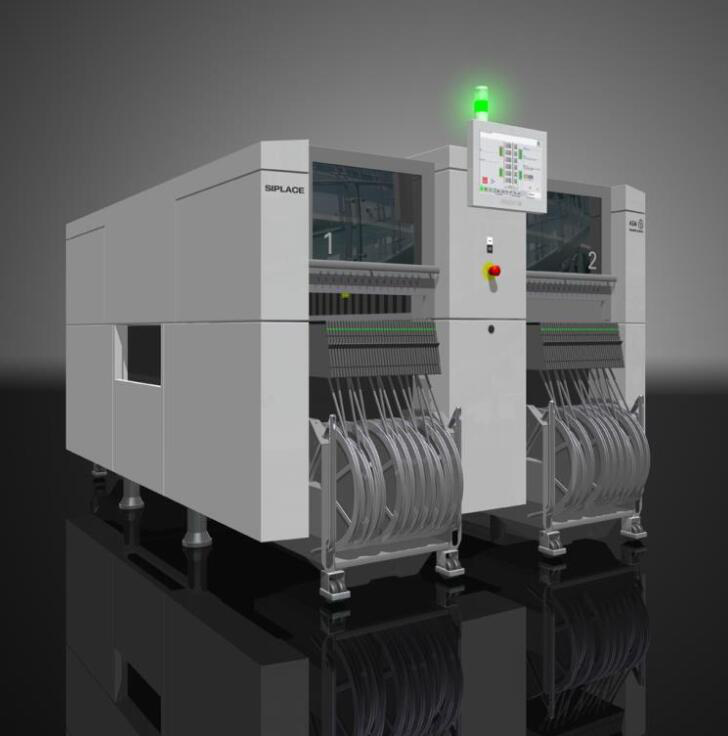

Siemens placement machine X3

2023-10-10
5425
Siemens placement machine X3

Detailed introduction

Product Features:

Siemens placement machine X3 Among electronic product manufacturers, the SIPLACE can provide effective support.

The SIPLACE Comprehensive support is available for you.




SIPLACE X3 technical parameters:

Number of cantilevers: 3

Placement performance

IPC speed:64,983 cph

SIPLACE Benchmark:76,450 cph

Theoretical speed: 86,006 cph

Machine size: 1.9 x 2.3*

Component range 0201" - 200 x 125 mm

Placement accuracy ± 22 μm/3σ

Angular accuracy ± 0,05°/3σ

Conveyor modeAsynchronous, synchronous, i-placement (X4i S)

PCB format 50 x 50 mm² to 650 x 560 mm² max. (X4 S, X3 S) **

         50 x 50 mm² to 610 x 560 mm² max. (X4i S)

PCB thickness: 0,3 to 4,5 mm (other thicknesses upon request)

PCB weight: 3 kg max.

Component supply and material supply

Feeder positions: X3 S & X4 S: 160 tracks with 8 mm X-feeders
