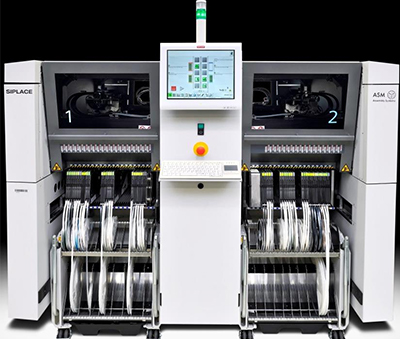

Siemens placement machine X4iS

2023-10-10
5497
Siemens placement machine X4iS

Detailed introduction

Product Features:

Siemens placement machine X4iS , the world's fastest placement head, can even handle metric 0201 components without slowing down at all.

SIPLACE MultiStar

The only placement head in the world that can switch between collect and place, pick and place, and mixed modes on demand.

SIPLACE software

Powerful software plays an increasingly important role in the production of electronic products

Smart conveyor belt

What do you need? SIPLACE X-Series can be operated in single or double rails

SIPLACE X feeder

Intelligent feeder, using non-contact power and data transmission, high precision, reliability and low maintenance requirements

SIPLACE digital imaging system

Our digital cameras never miss a detail, helping you achieve higher quality reliability






SIPLACE X4i S technical parameters:

Placement performance

Number of cantilevers: 4

IPC speed: 125,000 cph

SIPLACE Benchmark: 150,000 cph

Theoretical speed: 200,000 cph

Machine size: 1.9 x 2.3

Mounting head characteristics: SpeedStar

Component range: 0201 (metric) - 6 x 6 mm

Placement accuracy: ± 36 μm/3σ

Angular accuracy: ± 0,5°/3σ

Maximum component height: 4 mm

Placement force: 1,3 - 4,5 Newtons



Conveyor belt characteristics

Conveyor type: single track, flexible double track

Conveyor mode: asynchronous, synchronous, independent placement mode (X4i S)

PCB format: 50 x 50 mm - 850 x 560 mm (X4 S, X3 S, X2 S) 3

                  50 x 50 mm to 610 x 510 mm max. (X4i S)

PCB thickness: 0,3 - 4,5 mm (other sizes can be customized on request)

PCB weight: 3 kg more



Component supply and material supply

Feeder capacity: X4i S: 148 8 mm X feeder modules

Feeder module types: SIPLACE component trolley, SIPLACE matrix tray feeder (MTC) 4, waffle tray tray (WPC5/WPC6) 4, JTF-S/JTF-M SIPLACE X feeder Tray tray, vibration Material tubes, vibrating feeders, custom OEM feeder modules



quality rating

Pickup rate: ≥ 99,95%

DPM rate: ≤ 3 dpm

Lighting level: Level 6 illumination
