Siemens placement machine SX2

2023-10-10
4106
Siemens placement machine SX2

Detailed introduction

Product Features:

Siemens placement machine SX2 is scalable and flexible. Customers can quickly introduce new products, quickly change settings without shutting down the line, and produce products in any batch size, improving availability and efficiency. Whether used in automotive, automation, medical, telecommunications or in IT infrastructure – the SIPLACESX series meets all demands for quality, process reliability and speed. With its unique exchangeable cantilevers, SIPLACESX is a placement solution that can be fully expanded according to needs. Increase production capacity when needed and reduce production capacity when order volumes decrease. We call it SIPLACE on-demand expansion.

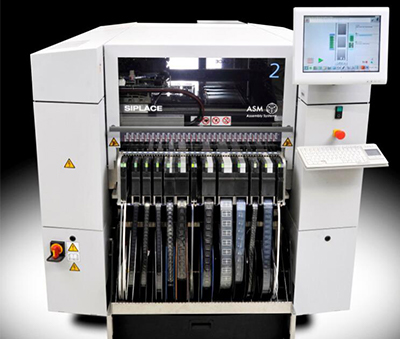

 Siemens placement machine SX2.png

Siemens placement machine SX2 technical parameters:

Number of cantilevers: 2

IPC speed: 59,000cph

SIPLACE Benchmark: 74,000cph

Theoretical speed: 86,900cph

Machine size: 1.5x2.4m

Placement head features: MultiStar

Component range (mm2): 01005-50x40mm

Mounting accuracy: ±41μm/3σ(C&P)~±34μm/3σ(P&P)

Angle accuracy: ±0.2°/3σ(C&P)~±0.1°/3σ(P&P)

Maximum component height: 11,5mm

Mounting force: 1,0-10 Newtons

Conveying type: single track, flexible double track

Conveying mode: asynchronous, synchronous, independent placement mode

PCB version size: 50x50mm-larger 850x560mm

PCB thickness: 0.3-6.5mm

PCB weight: 3kg more

Feeder capacity: 120 8mmX feeders
