Siemens placement machine SX1

2023-10-10
5066

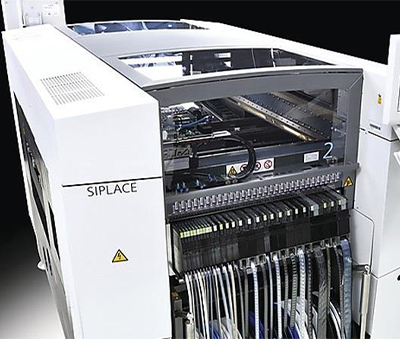

Siemens placement machine SX1

Detailed introduction

Product Features:

Siemens placement machine SX1 is equipped with the new SIPLACE CPP placement head. The SX placement machine is a solution specially developed to cope with this development trend.

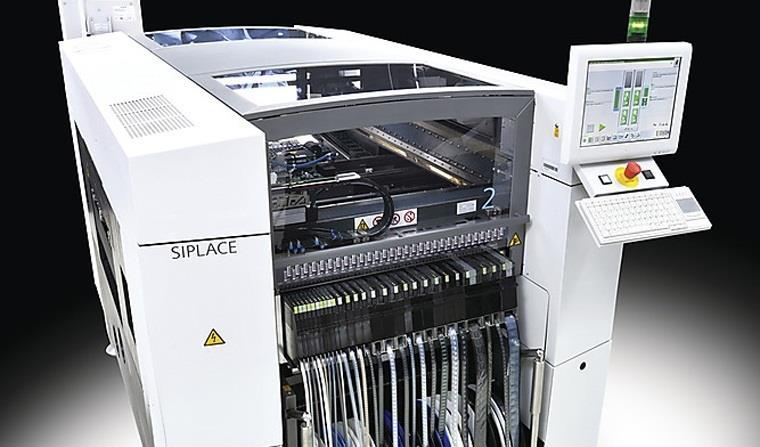

 Picture 2.png

Technical parameters of Siemens placement machine SX1:

Types of placement heads: CP20 placement head, CPP placement head, TH placement head

Component range: 02015-6*6mm 01005-50*50mm 0201-200*125mm

Component height: 4mm 11.5mm 40mm

Mounting accuracy: ±41um, ±0.5°@3q ±34um, ±0.2°@3q ±22um, ±0.05°@3q

Mounting speed: 33875CPH 24000CPH

Track size: 50*50mm-850*560 /50*50mm-850*460mm

PCB thickness: 0.3-4.5mm

Chatting position: 120

Voltage: Three-phase 200/220/208/230/380/400/415VAC±10%,50/60HZ

Air pressure: 5.0BAR (0.5MPA)-10BAR (1.0MPA)

Machine size: 1400*2854

Equipment weight: 2482KG
