Siemens placement machine D4i

2023-10-10
4945次

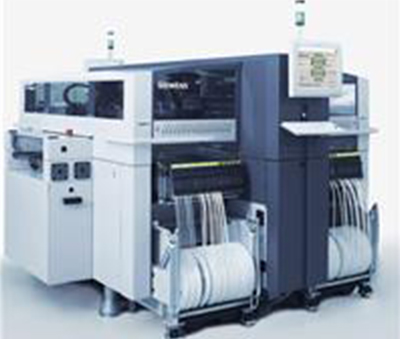

Siemens placement machine D4i

详细介绍

Siemens placement machine D4i parameters:

Siemens placement machine


PCB size: 450×535mm

Placement speed: 0.026

SMT accuracy: ±0.041mm

Placement stations: 148/180 Placement speed: Speed theory: 135,000 components/hour IPC9850 standard: 102,000 components/hour

Siemens SMT machine X4 i is mainly used in the SMT production of MID, smartphone motherboards, smart digital electronics, and consumer products!


Features of Siemens X4i placement machine : Main features of SIPLACE X series placement machine

(1) Highly modular to meet various needs

SIPLACE X series placement machines can handle different products with their superior characteristics and IRF3205PBF's wide component placement range to meet the different needs of customer production. SIPLACE X series placement machines support high-precision and ultra-high-speed 20-nozzle collection and placement heads.

Starting from software version 703.xx, all X-series placement machines are equipped with the newly developed SIPLACE MultiStar placement head. MultiStar placement head (CPP head for short) has higher placement speed and flexibility.

(2) SIPLACE four-track transmission system

The four-track conveyor system allows four different products to be produced simultaneously on one line. It can be configured for single, dual or four-rail use via software. The SIPLACE four-track transmission system can be configured in SIPLACE X4i and SIPLACE X4.

(3) 01005 placement function

As standard, the SIPLACE X series is designed for 01005 components and also offers nozzles developed for 01005 components. 01005 components can be mounted independently next to large components with minimum spacing.


Shenzhen Topco Electronic Equipment Co., Ltd. specializes in providing electronic manufacturers with the following SMT printing machines , Koh Young  SPI , Easa reflow soldering , non-standard automation equipment, patch machine rental and rental, and other complete SMT spare parts and SMT.

Siemens placement machine X4i, siemens SIPLAcE X4i placement machine: Main features of SIPLACE X series placement machines (1) The highly modular SIPLACE Respond to different products to meet the different production needs of customers. SIPLACE X series placement machines support high-precision and ultra-high-speed 20-nozzle collection and placement heads.
